Purpose(Empty Backbone) Destination plasmid with mRuby2 for Golden Gate reaction of TALE assembly
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 47875 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepCAG-T7-TALEN (Sangamo)
-
Vector typeMammalian Expression, TALEN
- Promoter CAG
-
Tag
/ Fusion Protein
- mRuby2 (C terminal on backbone)
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)SURE
-
Copy numberHigh Copy
Resource Information
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pTALYM4 was a gift from Maria-Elena Torres-Padilla (Addgene plasmid # 47875 ; http://n2t.net/addgene:47875 ; RRID:Addgene_47875) -
For your References section:
Live visualization of chromatin dynamics with fluorescent TALEs. Miyanari Y, Ziegler-Birling C, Torres-Padilla ME. Nat Struct Mol Biol. 2013 Oct 6. doi: 10.1038/nsmb.2680. 10.1038/nsmb.2680 PubMed 24096363

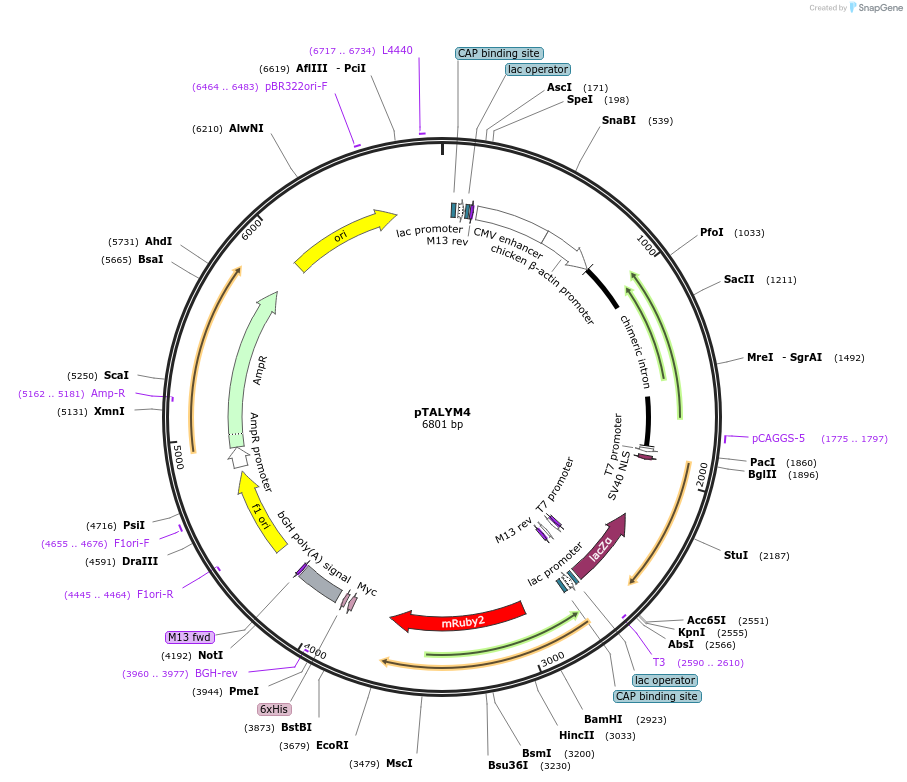

Map uploaded by the depositor.
