pFAB3893
(Plasmid
#47844)
-
PurposeBIOFAB RFP reporter plasmid for measuring promoter 13 + BCD1 efficiency.
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 47844 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

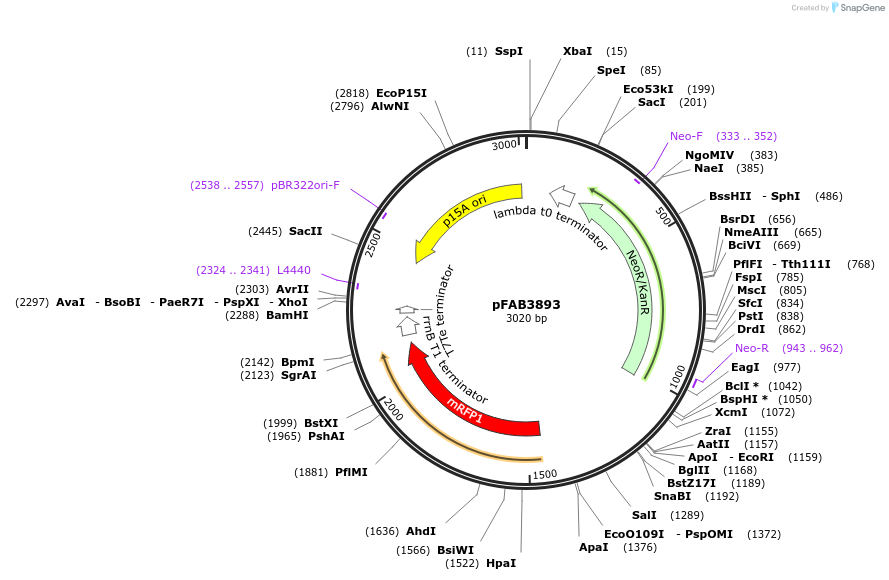

Backbone
-
Vector backbonepFAB1781
- Backbone size w/o insert (bp) 3000
-
Vector typeBacterial Expression, Synthetic Biology
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)BW25113
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namepromoter 13 and BCD1
-
Alt nameP13, apFAB232 and BCD1, apFAB681
-
SpeciesSynthetic
-
Insert Size (bp)124
- Promoter see insert
Cloning Information
- Cloning method Unknown
- 5′ sequencing primer Neo-R
- 3′ sequencing primer p15A-R (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
RFP fluorescence (Arbitrary Units, AU) is used to measure the efficiency of the promoter/BCD combination. Promoter/BCD combinations ranged from a low score of 6.14 to a high score of 634.54. The score for this combination was: 48.98
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pFAB3893 was a gift from Drew Endy (Addgene plasmid # 47844 ; http://n2t.net/addgene:47844 ; RRID:Addgene_47844) -
For your References section:
Precise and reliable gene expression via standard transcription and translation initiation elements. Mutalik VK, Guimaraes JC, Cambray G, Lam C, Christoffersen MJ, Mai QA, Tran AB, Paull M, Keasling JD, Arkin AP, Endy D. Nat Methods. 2013 Apr;10(4):354-60. doi: 10.1038/nmeth.2404. Epub 2013 Mar 10. 10.1038/nmeth.2404 PubMed 23474465
