PurposeFluorescent reporter for Ca2+ inside primary cilia
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 47499 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |

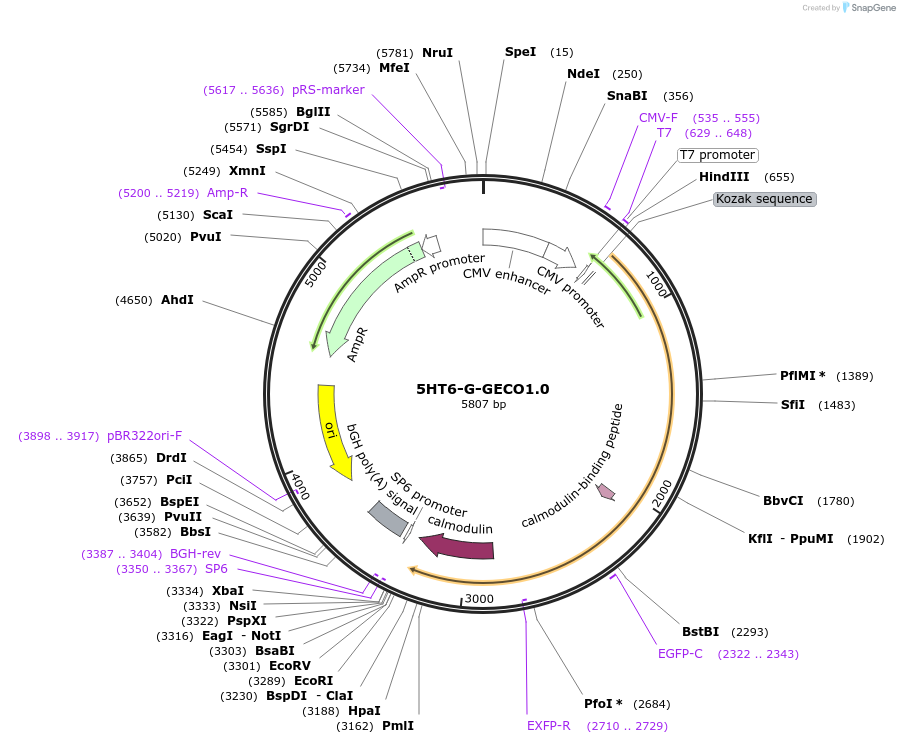

Backbone
-
Vector backboneCustomized
- Backbone size w/o insert (bp) 4450
- Total vector size (bp) 5800
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert name5-hydroxytriptamine receptor isoform 6
-
Alt name5HT6
-
SpeciesM. musculus (mouse)
-
Insert Size (bp)1350
-
GenBank IDNM_021358
-
Entrez GeneHtr6 (a.k.a. 5-HT6)
-
Tag
/ Fusion Protein
- G-GECO1.0 (C terminal on backbone)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BamHI (not destroyed)
- 3′ cloning site BamHI (not destroyed)
- 5′ sequencing primer CMVforward
- 3′ sequencing primer SP6 (Common Sequencing Primers)
Resource Information
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
5HT6-G-GECO1.0 was a gift from Takanari Inoue (Addgene plasmid # 47499 ; http://n2t.net/addgene:47499 ; RRID:Addgene_47499) -
For your References section:
Genetically encoded calcium indicator illuminates calcium dynamics in primary cilia. Su S, Phua SC, Derose R, Chiba S, Narita K, Kalugin PN, Katada T, Kontani K, Takeda S, Inoue T. Nat Methods. 2013 Sep 22. doi: 10.1038/nmeth.2647. 10.1038/nmeth.2647 PubMed 24056873
