pAAV_hSyn_TALEBB(NI)-NLS-SID4X_2A_phiLOV2.1_WPRE_bGHpA
(Plasmid
#47452)
-
PurposeAAV TALE synthesis backbone with NI half repeat; fused to nuclear localization sequence linker and SID4X transcriptional repressor effector domain. Synapsin promoter for neuronal expression.
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 47452 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepAAV_hSyn_WPRE_bGHpA
-
Backbone manufacturerZhang Lab
- Backbone size w/o insert (bp) 4281
- Total vector size (bp) 5810
-
Vector typeMammalian Expression, AAV ; TALE
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)Stbl3
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameTALE BB(N136_0.5NI_C63)-SID4X
-
SpeciesSynthetic
-
Insert Size (bp)1529
- Promoter hSyn human synapsin (mammalian neuronal expression)
-
Tag
/ Fusion Protein
- 2A_phiLOV2.1 (C terminal on insert)
Cloning Information
- Cloning method Unknown
- 5′ sequencing primer multiple (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pAAV_hSyn_TALEBB(NI)-NLS-SID4X_2A_phiLOV2.1_WPRE_bGHpA was a gift from Feng Zhang (Addgene plasmid # 47452 ; http://n2t.net/addgene:47452 ; RRID:Addgene_47452) -
For your References section:
Optical control of mammalian endogenous transcription and epigenetic states. Konermann S, Brigham MD, Trevino A, Hsu PD, Heidenreich M, Le Cong, Platt RJ, Scott DA, Church GM, Zhang F. Nature. 2013 Jul 23. doi: 10.1038/nature12466. 10.1038/nature12466 PubMed 23877069

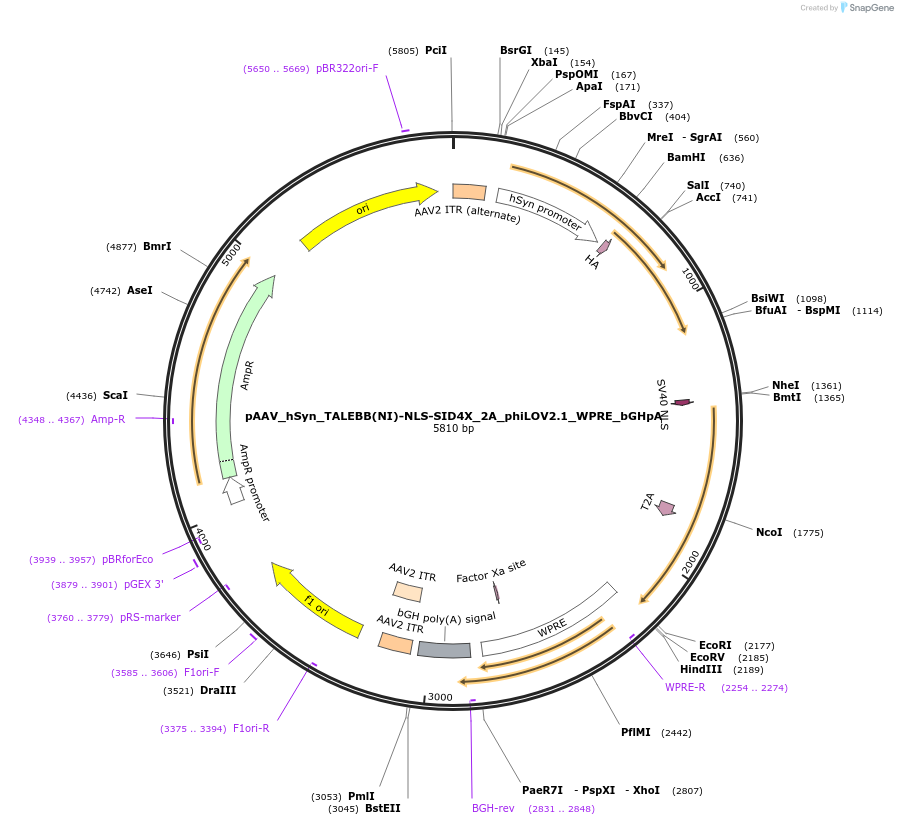

Map uploaded by the depositor.
