pmECFPC1/GgVcl 1-1066 (CFP at N term)
(Plasmid
#46281)
-
Depositing Lab
-
Publication
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 46281 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |

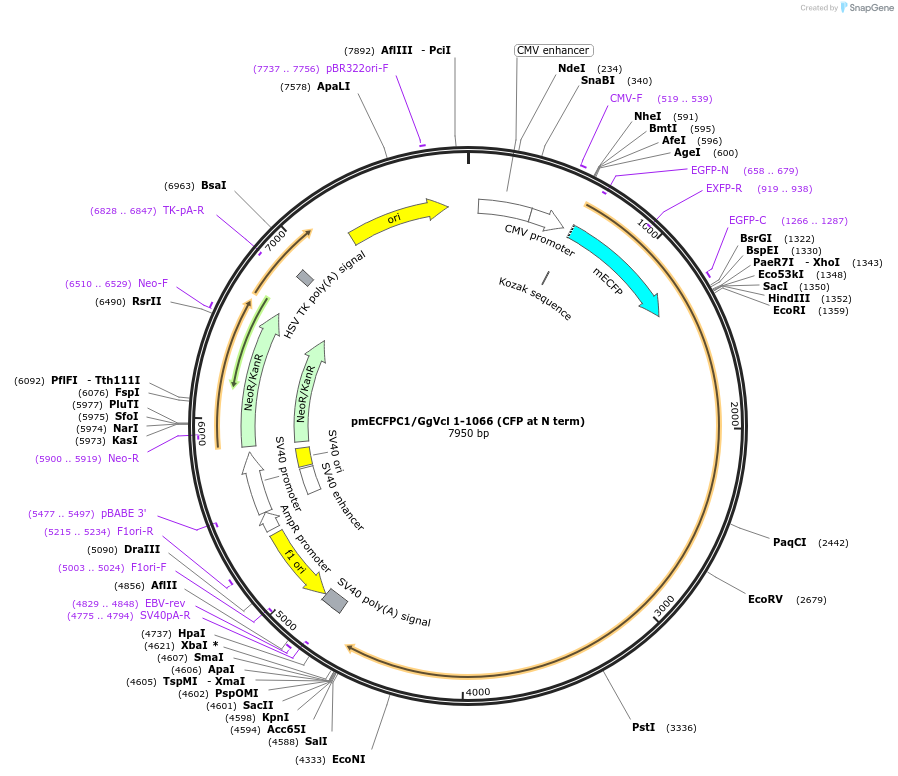

Backbone
-
Vector backbonepECFP-C1
-
Backbone manufacturerClonetech
- Backbone size w/o insert (bp) 4700
- Total vector size (bp) 7950
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameVcl 1-1066
-
Alt nameVinculin
-
Alt nameVcl
-
SpeciesG. gallus (chicken)
-
Entrez GeneVCL (a.k.a. VINC1)
- Promoter CMV
-
Tag
/ Fusion Protein
- ECFP (N terminal on backbone)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site EcoRI (not destroyed)
- 3′ cloning site SalI (not destroyed)
- 5′ sequencing primer EGFP-C
- 3′ sequencing primer SV40pA-R (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pmECFPC1/GgVcl 1-1066 (CFP at N term) was a gift from Susan Craig (Addgene plasmid # 46281 ; http://n2t.net/addgene:46281 ; RRID:Addgene_46281) -
For your References section:
Spatial distribution and functional significance of activated vinculin in living cells. Chen H, Cohen DM, Choudhury DM, Kioka N, Craig SW. J Cell Biol. 2005 May 9;169(3):459-70. 10.1083/jcb.200410100 PubMed 15883197
