pET15b/GgVcl V1-851 (aka Vh)
(Plasmid
#46172)
-
Depositing Lab
-

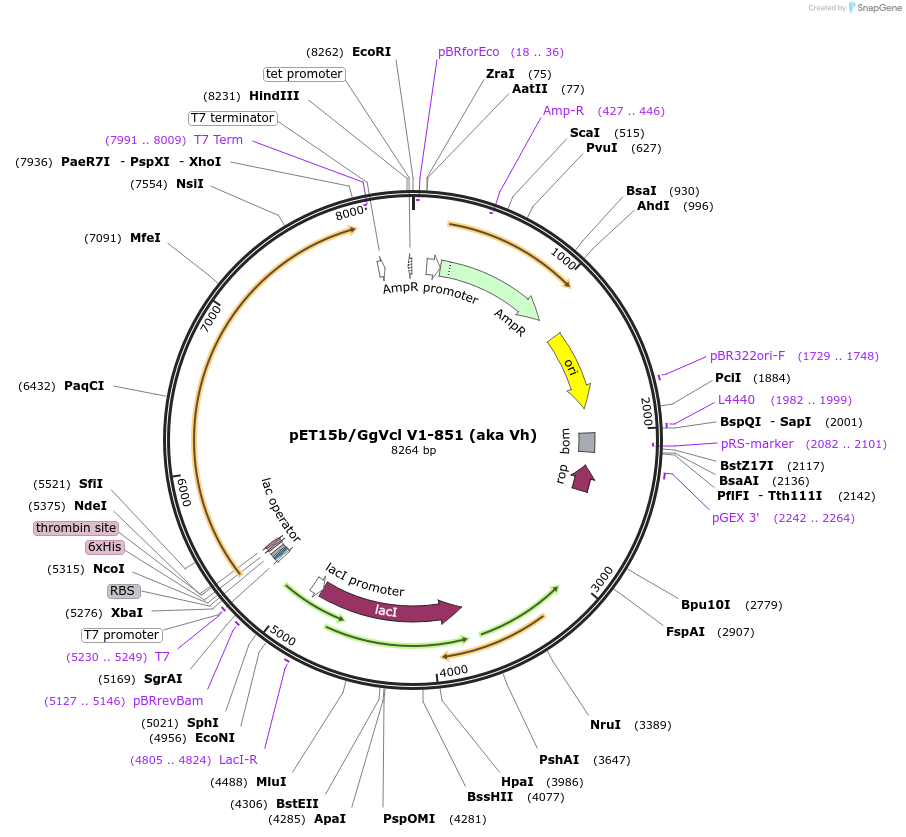

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 46172 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepET-15b
-
Backbone manufacturerEMD
- Backbone size w/o insert (bp) 5700
- Total vector size (bp) 8264
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameVcl 1-851
-
Alt nameVinculin
-
Alt nameVcl
-
SpeciesG. gallus (chicken)
-
Insert Size (bp)2559
-
Mutationaa 1-851 (aka Vh) head domain
-
GenBank IDNM_205441.1
-
Entrez GeneVCL (a.k.a. VINC1)
- Promoter T7
-
Tag
/ Fusion Protein
- His (N terminal on backbone)
Cloning Information
- Cloning method TOPO Cloning
- 5′ sequencing primer T7
- 3′ sequencing primer T7 terminal (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Using in-frame primers containing 5′-NdeI and 3′-XhoI sites, appropriate regions of the chicken vinculin cDNA sequence were amplified by PCR followed by addition of 3′-adenosine overhangs with Taq polymerase. The PCR products were ligated into the TOPO II plasmid (Invitrogen) and then subcloned into pET15b His tag expression vector (Novagen, Madison, WI) using NdeI and XhoI digestion of the multiple cloning site.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pET15b/GgVcl V1-851 (aka Vh) was a gift from Susan Craig (Addgene plasmid # 46172 ; http://n2t.net/addgene:46172 ; RRID:Addgene_46172) -
For your References section:
Two distinct head-tail interfaces cooperate to suppress activation of vinculin by talin. Cohen DM, Chen H, Johnson RP, Choudhury B, Craig SW. J Biol Chem. 2005 Apr 29;280(17):17109-17. Epub 2005 Feb 22. 10.1074/jbc.M414704200 PubMed 15728584
