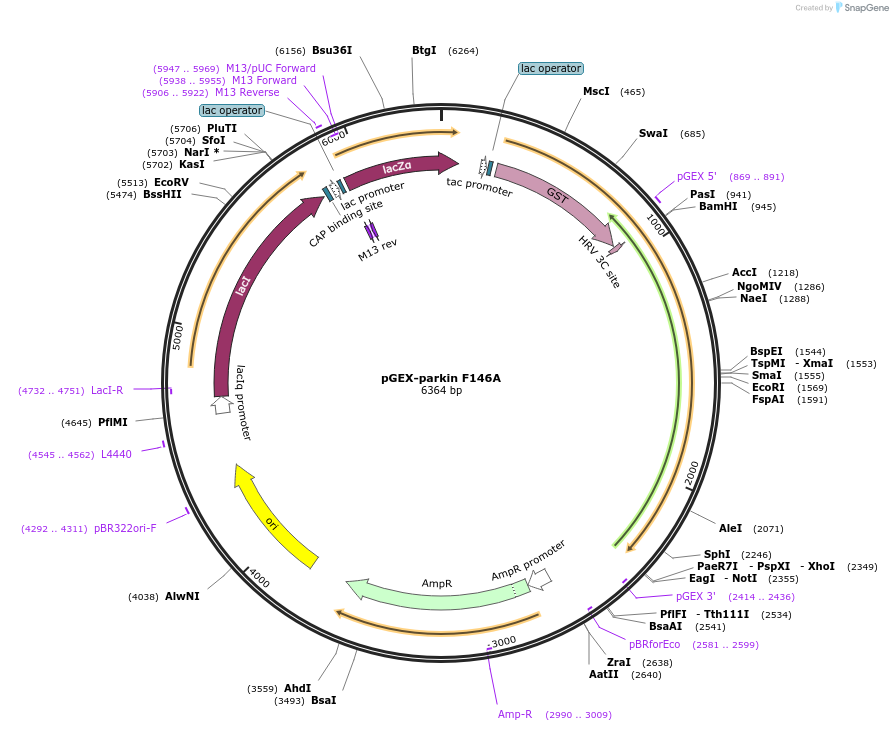

pGEX-parkin F146A
(Plasmid #45973)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 45973 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pGEX-6P-1
  • Backbone manufacturer
    Amersham
  • Backbone size w/o insert (bp) 4966
  • Total vector size (bp) 6364
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    Parkin F146A
  • Alt name
    PARK2
  • Species
    R. norvegicus (rat)
  • Insert Size (bp)
    1398
  • Mutation
    Codon usage optimized for E.coli expression. Changed Phe146 to alanine.
  • Entrez Gene
    Prkn (a.k.a. Park, Park2)
  • Promoter tac
  • Tag / Fusion Protein
    • GST (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site XhoI (not destroyed)
  • 5′ sequencing primer PGEXF
  • 3′ sequencing primer PGEXR
    • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    DNAexpress (http://dnaxps.com) performed mutagenesis from codon optimized wild-type parkin in pGEX-6P-1.

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pGEX-parkin F146A was a gift from Kalle Gehring (Addgene plasmid # 45973 ; http://n2t.net/addgene:45973 ; RRID:Addgene_45973)

  • For your References section:

    Structure of Parkin Reveals Mechanisms for Ubiquitin Ligase Activation. Trempe JF, Sauve V, Grenier K, Seirafi M, Tang MY, Menade M, Al-Abdul-Wahid S, Krett J, Wong K, Kozlov G, Nagar B, Fon EA, Gehring K. Science. 2013 May 9. 10.1126/science.1237908 PubMed 23661642
