pSARSF534-3
(Plasmid
#45618)
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 45618 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepRSFDuet-1
-
Backbone manufacturerNovagen
- Backbone size w/o insert (bp) 3559
- Total vector size (bp) 4228
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameNpuDnaEC35-GFP_C
-
Alt nameC-intein of NpuDnaE fused to C-terminal fragment of split GFP
-
SpeciesNostoc punctiforme
-
Insert Size (bp)669
-
MutationSYG->CYG in chromophore
- Promoter T7
-
Tag
/ Fusion Protein
- H6 (N terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site NdeI (not destroyed)
- 3′ cloning site HindIII (not destroyed)
- 5′ sequencing primer T7
- 3′ sequencing primer T7term (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pSARSF534-3 was a gift from Hideo Iwai (Addgene plasmid # 45618 ; http://n2t.net/addgene:45618 ; RRID:Addgene_45618) -
For your References section:
Intermolecular domain swapping induces intein-mediated protein alternative splicing. Aranko AS, Oeemig JS, Kajander T, Iwai H. Nat Chem Biol. 2013 Aug 25. doi: 10.1038/nchembio.1320. 10.1038/nchembio.1320 PubMed 23974115

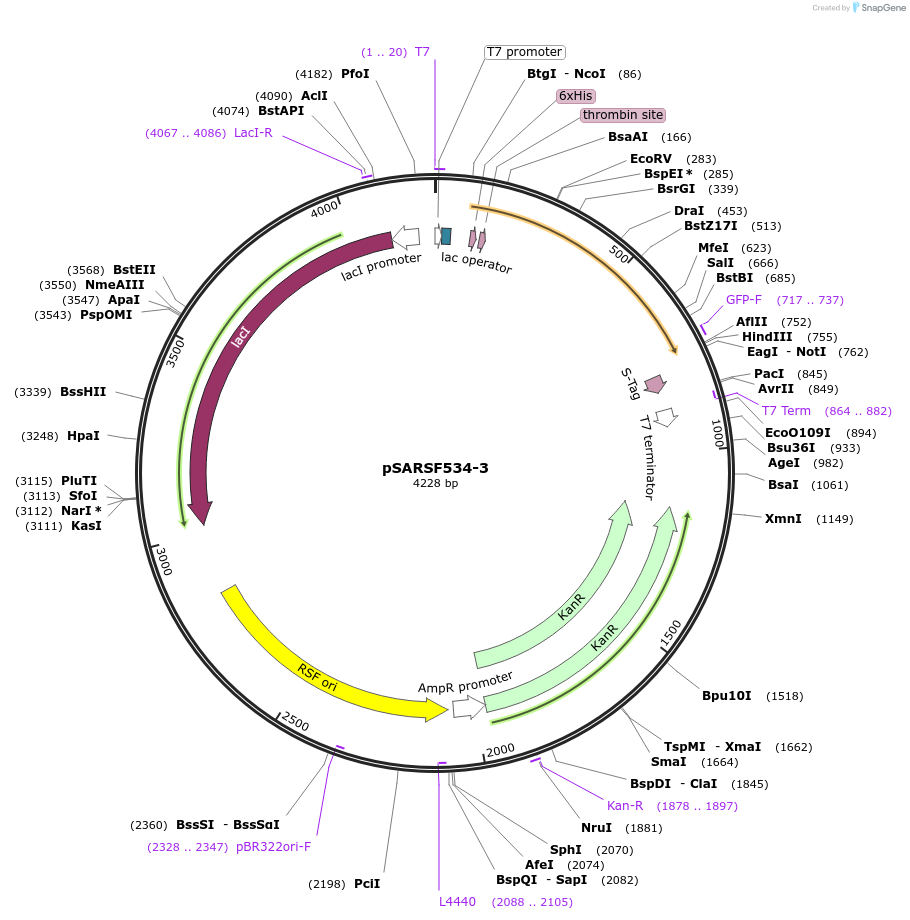

Map uploaded by the depositor.
