pSABAD250
(Plasmid #45612)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 45612 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

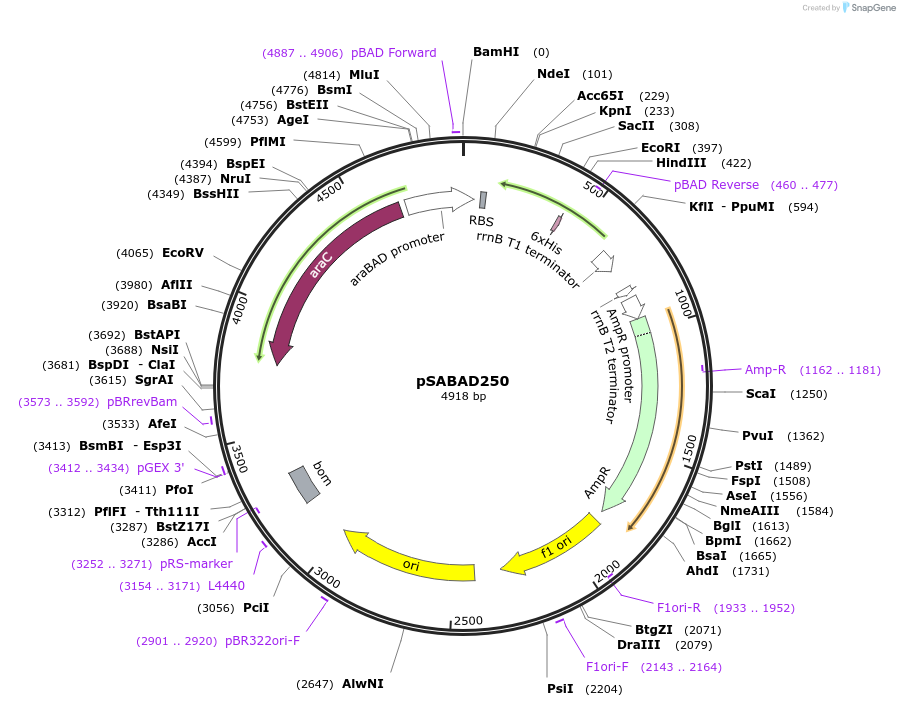

Backbone

  • Vector backbone
    pBAD
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 4597
  • Total vector size (bp) 4918
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    NpuDnaBC39
  • Alt name
    C-intein of split NpuDnaB C39 intein
  • Species
    nostoc punctiforme
  • Insert Size (bp)
    321
  • Promoter pBAD
  • Tag / Fusion Protein
    • GB1-H6 (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NdeI (not destroyed)
  • 3′ cloning site KpnI (not destroyed)
  • 5′ sequencing primer pBAD Forward
  • 3′ sequencing primer PBAD Reverse
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

There are 2 mismatches between Addgene's quality control and depositor's reference sequence. These changes are in backbone region and should not affect function.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pSABAD250 was a gift from Hideo Iwai (Addgene plasmid # 45612 ; http://n2t.net/addgene:45612 ; RRID:Addgene_45612)

  • For your References section:

    Intermolecular domain swapping induces intein-mediated protein alternative splicing. Aranko AS, Oeemig JS, Kajander T, Iwai H. Nat Chem Biol. 2013 Aug 25. doi: 10.1038/nchembio.1320. 10.1038/nchembio.1320 PubMed 23974115
