Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 45460 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepBAD/HisB
-
Backbone manufacturerInvitrogen
- Backbone size w/o insert (bp) 4067
- Total vector size (bp) 5018
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert nameiRFP720
-
SpeciesRhodopseudomonas palustris
-
Insert Size (bp)951
-
MutationT2A, S13L, A92T, V104T, V114I, E161K, E180S, Y193K, F198Y, D202F, V254N, Y258F, A283V, K288T, N290Y relative to RpBphP2
-
GenBank IDKC991145
- Promoter araBAD
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BglII (not destroyed)
- 3′ cloning site HindIII (not destroyed)
- 5′ sequencing primer pBAD-fwd
- 3′ sequencing primer pBAD-rev (Common Sequencing Primers)
Resource Information
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pBAD/HisB-iRFP720 was a gift from Vladislav Verkhusha (Addgene plasmid # 45460 ; http://n2t.net/addgene:45460 ; RRID:Addgene_45460) -
For your References section:
Near-infrared fluorescent proteins for multicolor in vivo imaging. Shcherbakova DM, Verkhusha VV. Nat Methods. 2013 Jun 16. doi: 10.1038/nmeth.2521. 10.1038/nmeth.2521 PubMed 23770755

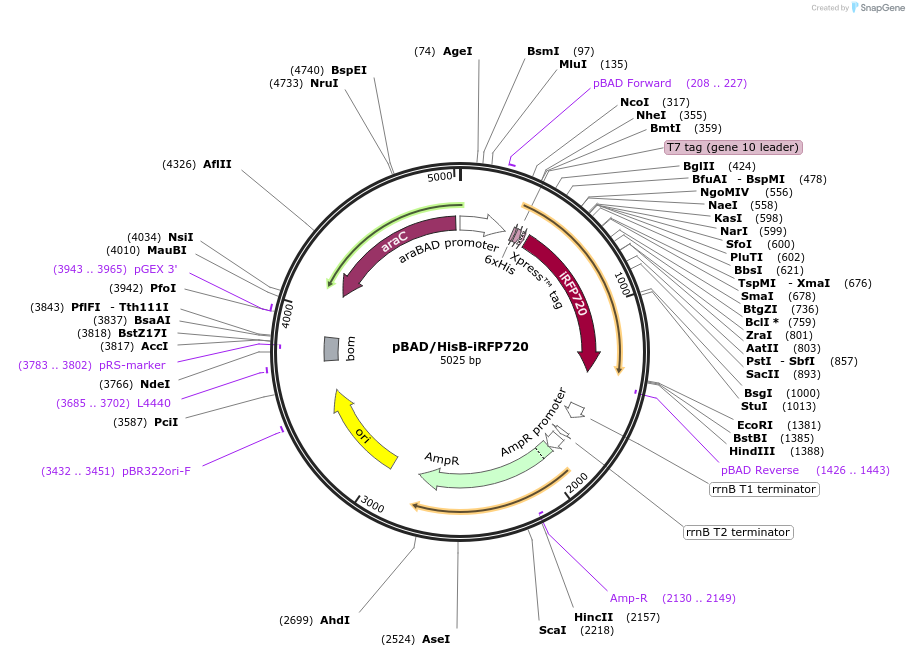

Map uploaded by the depositor.
