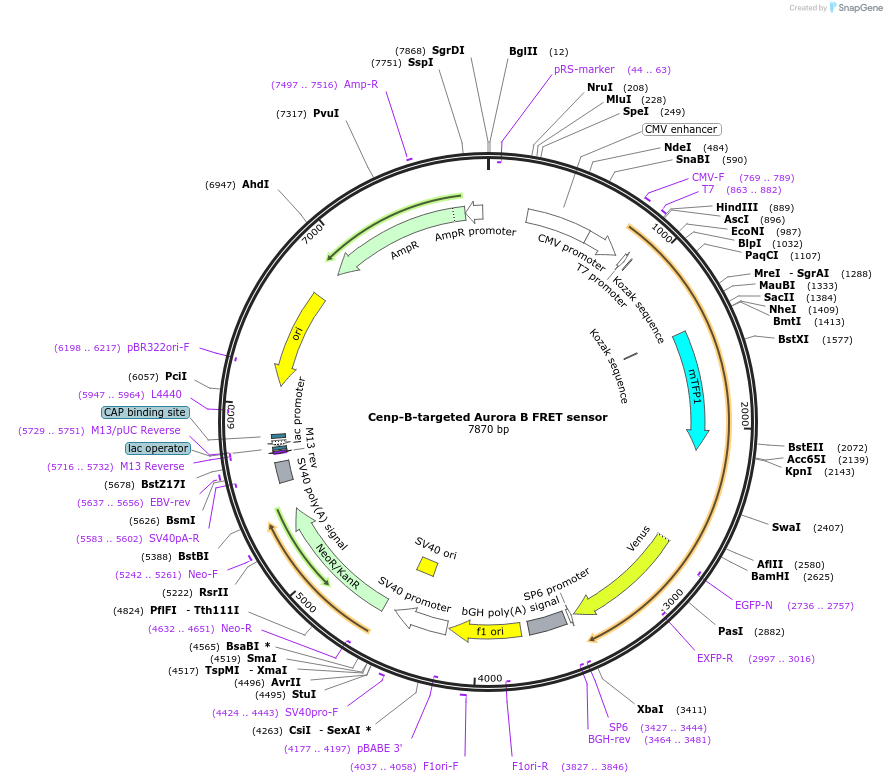

Cenp-B-targeted Aurora B FRET sensor
(Plasmid #45232)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 45232 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pcDNA3.1
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 5446
  • Total vector size (bp) 7870
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    CENP-B targeted Aurora B FRET sensor
  • Alt name
    pTC005
  • Insert Size (bp)
    2424
  • Promoter t7

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EconI (not destroyed)
  • 3′ cloning site XbaI (not destroyed)
  • 5′ sequencing primer not available
  • 3′ sequencing primer not available
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    Cenp-B-targeted Aurora B FRET sensor was a gift from Michael Lampson (Addgene plasmid # 45232 ; http://n2t.net/addgene:45232 ; RRID:Addgene_45232)

  • For your References section:

    Sensing chromosome bi-orientation by spatial separation of aurora B kinase from kinetochore substrates. Liu D, Vader G, Vromans MJ, Lampson MA, Lens SM. Science. 2009 Mar 6;323(5919):1350-3. doi: 10.1126/science.1167000. Epub 2009 Jan 15. 10.1126/science.1167000 PubMed 19150808
