Addgene

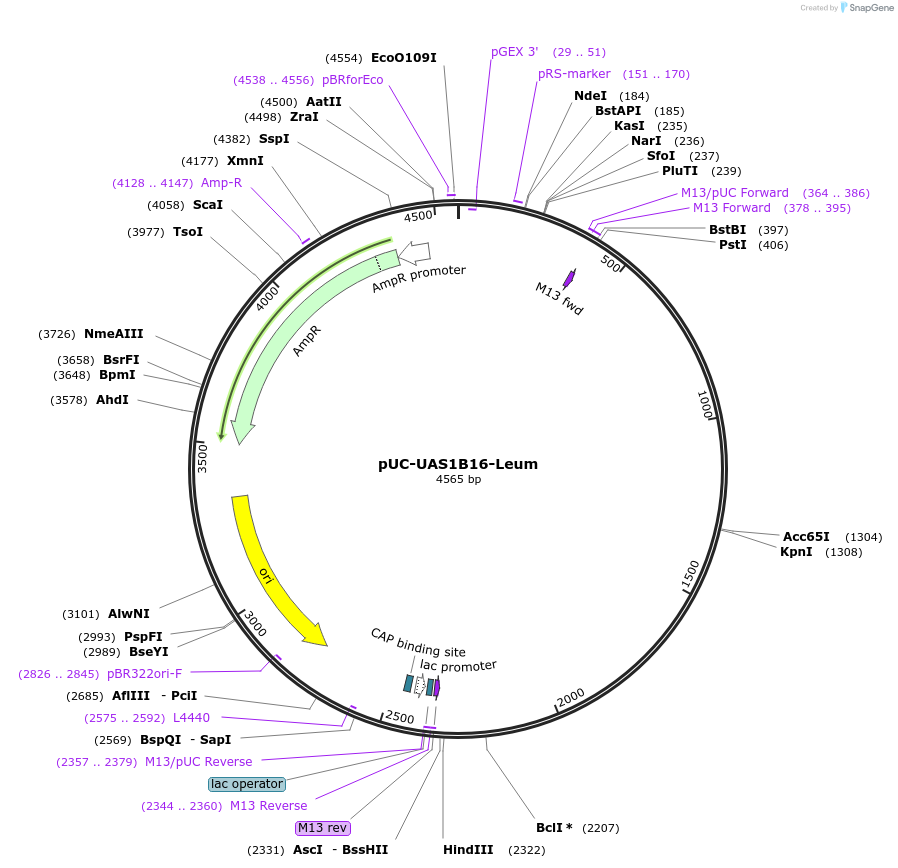

pUC-UAS1B16-Leum
(Plasmid #44324)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 44324 Standard format: Plasmid sent in bacteria as agar stab 1 $85 *

* Log in to view industry pricing.

Backbone

  • Vector backbone
    pUC19
  • Backbone size w/o insert (bp) 2623
  • Total vector size (bp) 4565
  • Modifications to backbone
    None
  • Vector type
    Bacterial Expression, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH10B
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    UAS1B16-Leum promoter
  • Species
    Yarrowia lipolytica
  • Insert Size (bp)
    1942
  • Mutation
    N/A
  • Promoter UAS1B16-Leum

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BstBI (not destroyed)
  • 3′ cloning site AscI (not destroyed)
  • 5′ sequencing primer m13_forward20_primer
  • 3′ sequencing primer m13_reverse_primer
  • (Common Sequencing Primers)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

A 140-bp minimal leucine promoter, Leum, from plasmid pMCSCen1 that was inserted into pUC19 with SphI/HindIII to form pUC-Leum. A UAS1B oligonucleotide was then inserted into pUC-Leum with SalI-HF/SphI-HF to form pUC-UAS1B1-Leum-No5′3′.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pUC-UAS1B16-Leum was a gift from Hal Alper (Addgene plasmid # 44324 ; http://n2t.net/addgene:44324 ; RRID:Addgene_44324)
  • For your References section:

    Tuning gene expression in Yarrowia lipolytica by a hybrid promoter approach. Blazeck J, Liu L, Redden H, Alper H. Appl Environ Microbiol. 2011 Nov;77(22):7905-14. doi: 10.1128/AEM.05763-11. Epub 2011 Sep 16. 10.1128/AEM.05763-11 PubMed 21926196
