This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 44241 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepET-28a
-
Backbone manufacturerNovagen
- Backbone size w/o insert (bp) 5400
- Total vector size (bp) 7100
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert namePyruvate Kinase M1
-
Alt namePKM1
-
SpeciesH. sapiens (human)
-
Insert Size (bp)1700
-
Entrez GenePKM (a.k.a. CTHBP, HEL-S-30, OIP3, PK3, PKM2, TCB, THBP1, p58)
- Promoter T7
-
Tag
/ Fusion Protein
- 6xHis (N terminal on backbone)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site EcoRI (not destroyed)
- 3′ cloning site EcoRI (not destroyed)
- 5′ sequencing primer T7 Promoter Primer
- 3′ sequencing primer T7 Terminator Primer (Common Sequencing Primers)
Resource Information
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pET-28a-hPKM1 was a gift from Lewis Cantley & Matthew Vander Heiden (Addgene plasmid # 44241 ; http://n2t.net/addgene:44241 ; RRID:Addgene_44241) -
For your References section:
Pyruvate kinase M2 is a phosphotyrosine-binding protein. Christofk HR, Vander Heiden MG, Wu N, Asara JM, Cantley LC. Nature. 2008 Mar 13;452(7184):181-6. doi: 10.1038/nature06667. 10.1038/nature06667 PubMed 18337815

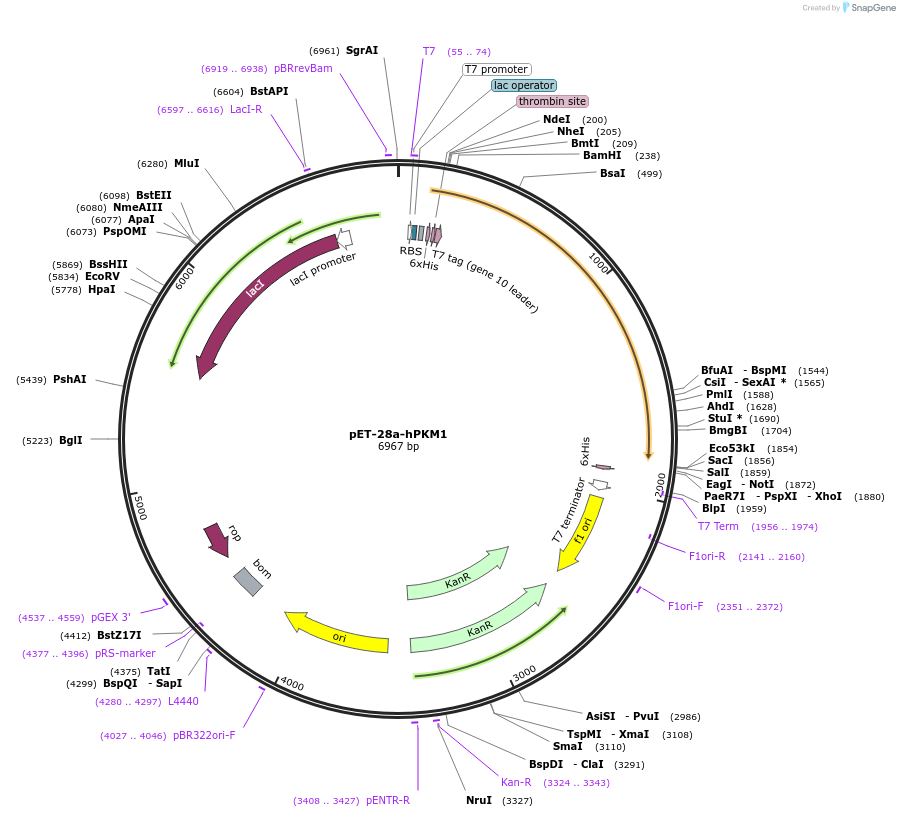

Map uploaded by the depositor.
