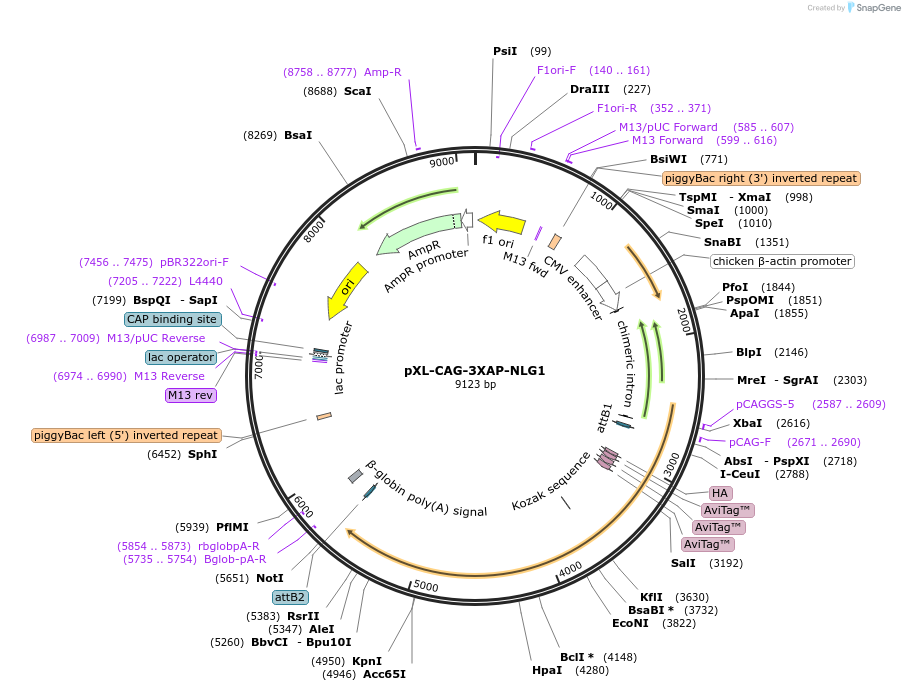

pXL-CAG-3XAP-NLG1
(Plasmid #43923)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 43923 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pCAG
  • Backbone size w/o insert (bp) 6390
  • Total vector size (bp) 9123
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    XL1 Blue
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    3XAP-NLG1
  • Alt name
    Neuroligin1
  • Species
    R. norvegicus (rat)
  • Promoter Chicken Beta Actin
  • Tag / Fusion Protein
    • HA (N terminal on insert)

Cloning Information

  • Cloning method Gateway Cloning
  • 5′ sequencing primer CACCCCCTCTAGCGGGCGCGG
  • 3′ sequencing primer TGTGAGCCAGGGCATTGGCCACACC
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pXL-CAG-3XAP-NLG1 was a gift from Alice Ting (Addgene plasmid # 43923 ; http://n2t.net/addgene:43923 ; RRID:Addgene_43923)
  • For your References section:

    Imaging trans-cellular neurexin-neuroligin interactions by enzymatic probe ligation. Liu DS, Loh KH, Lam SS, White KA, Ting AY. PLoS One. 2013;8(2):e52823. doi: 10.1371/journal.pone.0052823. Epub 2013 Feb 14. 10.1371/journal.pone.0052823 PubMed 23457442
