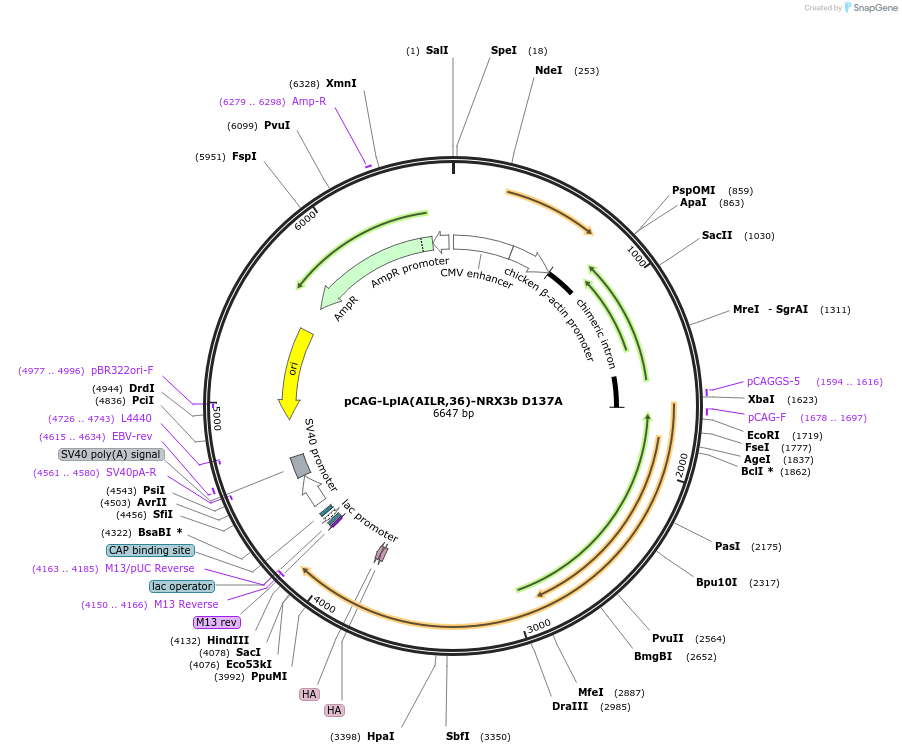

pCAG-LplA(AILR,36)-NRX3b D137A
(Plasmid #43920)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 43920 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pCAG
  • Backbone size w/o insert (bp) 4247
  • Total vector size (bp) 6647
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    XL1 Blue
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    AILR-LplA36-NRX3b
  • Alt name
    Neurexin3b
  • Alt name
    LplA
  • Species
    H. sapiens (human), Synthetic
  • Mutation
    D137A
  • Entrez Gene
    lplA (a.k.a. b4386, ECK4378, JW4349, slr, yjjF)
  • Promoter Chicken Beta Actin
  • Tag / Fusion Protein
    • 2XHA

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site HindIII (not destroyed)
  • 5′ sequencing primer CGCCGCCGTCCCCTTCTCCATCTC
  • 3′ sequencing primer CAGGCTTTACACTTTATGCTTCCGGC
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCAG-LplA(AILR,36)-NRX3b D137A was a gift from Alice Ting (Addgene plasmid # 43920 ; http://n2t.net/addgene:43920 ; RRID:Addgene_43920)
  • For your References section:

    Imaging trans-cellular neurexin-neuroligin interactions by enzymatic probe ligation. Liu DS, Loh KH, Lam SS, White KA, Ting AY. PLoS One. 2013;8(2):e52823. doi: 10.1371/journal.pone.0052823. Epub 2013 Feb 14. 10.1371/journal.pone.0052823 PubMed 23457442
