PurposeExpresses optogenetically controlled LRP6 (C-terminal domain)
-
Depositing Lab
-

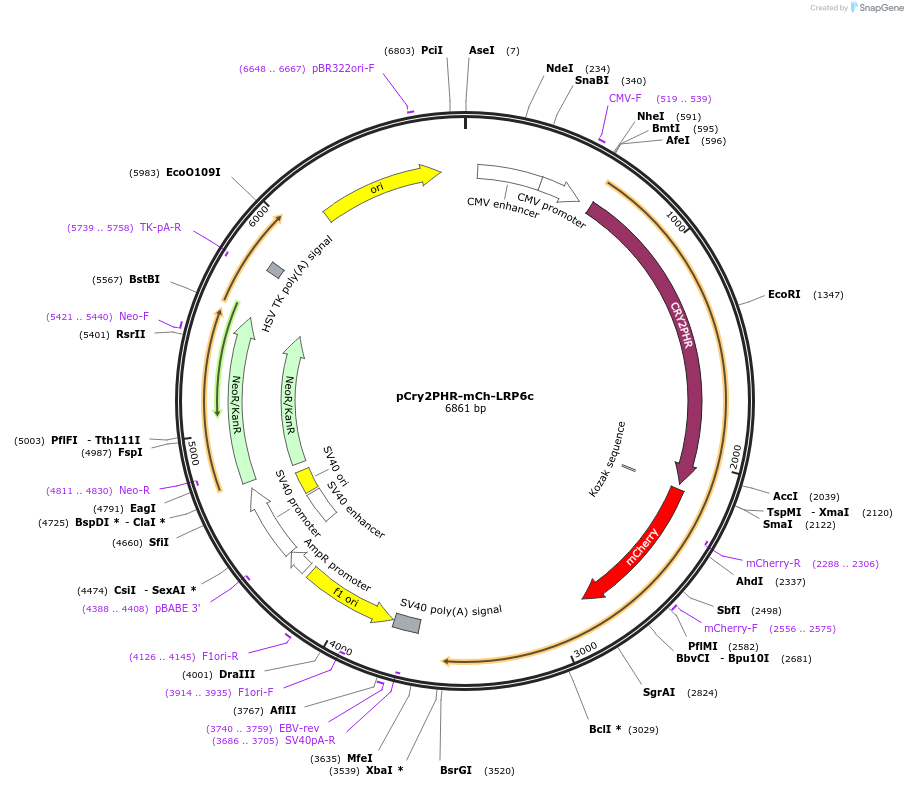

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 42960 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepmCherry-N1
-
Backbone manufacturerClontech
- Backbone size w/o insert (bp) 3948
- Total vector size (bp) 6861
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)Top10
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameCry2PHR-mCherry-LRP6c
-
SpeciesH. sapiens (human), A. thaliana (mustard weed)
-
Insert Size (bp)2913
-
MutationLPR6 cytoplasmic domain only
- Promoter CMV
Cloning Information
- Cloning method Ligation Independent Cloning
- 5′ sequencing primer CMV-F (Common Sequencing Primers)
Resource Information
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCry2PHR-mCh-LRP6c was a gift from David Schaffer (Addgene plasmid # 42960 ; http://n2t.net/addgene:42960 ; RRID:Addgene_42960) -
For your References section:
Optogenetic protein clustering and signaling activation in mammalian cells. Bugaj LJ, Choksi AT, Mesuda CK, Kane RS, Schaffer DV. Nat Methods. 2013 Feb 3. doi: 10.1038/nmeth.2360. 10.1038/nmeth.2360 PubMed 23377377
