pEXP5-NT-CuSeCat EE
(Plasmid #42569)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 42569 Standard format: Plasmid sent in bacteria as agar stab 1 $85

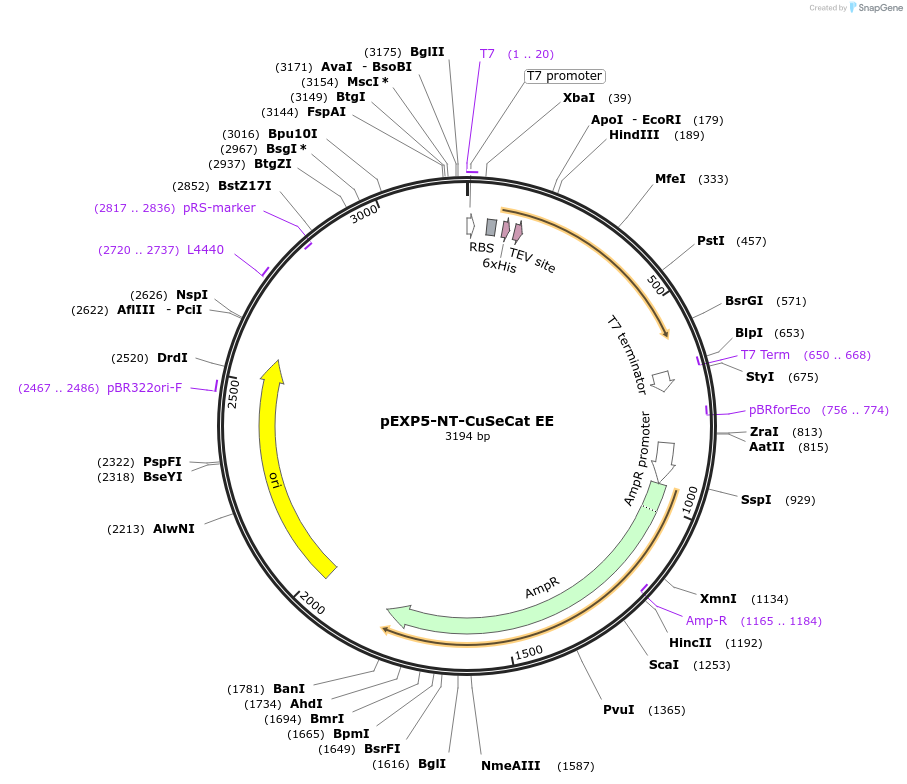

Backbone

  • Vector backbone
    pEXP5-NT/TOPO
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 2745
  • Total vector size (bp) 3194
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    mutated calmodulin gene
  • Species
    G. gallus (chicken)
  • Insert Size (bp)
    449
  • Mutation
    changed Phenylalanine 92 to Glutamine acid, Valine 91 to Methionine, Serine 101 to Glutamine acid, Histidine 107 to Isoleucine, Leucine 112 to Arginine, Asparagine 137 to Glutamine acid, Methionine 144 to Arginine, Threonine 146 to Arginine
  • Promoter T7
  • Tag / Fusion Protein
    • Polyhistidine (6×His) region, TEV recognition site (N terminal on insert)

Cloning Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pEXP5-NT-CuSeCat EE was a gift from Ivan Korendovych (Addgene plasmid # 42569 ; http://n2t.net/addgene:42569 ; RRID:Addgene_42569)
  • For your References section:

    Reprogramming EF-hands for design of catalytically amplified lanthanide sensors. Mack KL, Moroz OV, Moroz YS, Olsen AB, McLaughlin JM, Korendovych IV. J Biol Inorg Chem. 2013 Apr;18(4):411-8. doi: 10.1007/s00775-013-0985-5. Epub 2013 Feb 19. 10.1007/s00775-013-0985-5 PubMed 23420322
