pC1-HyPer-2
(Plasmid #42211)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 42211 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

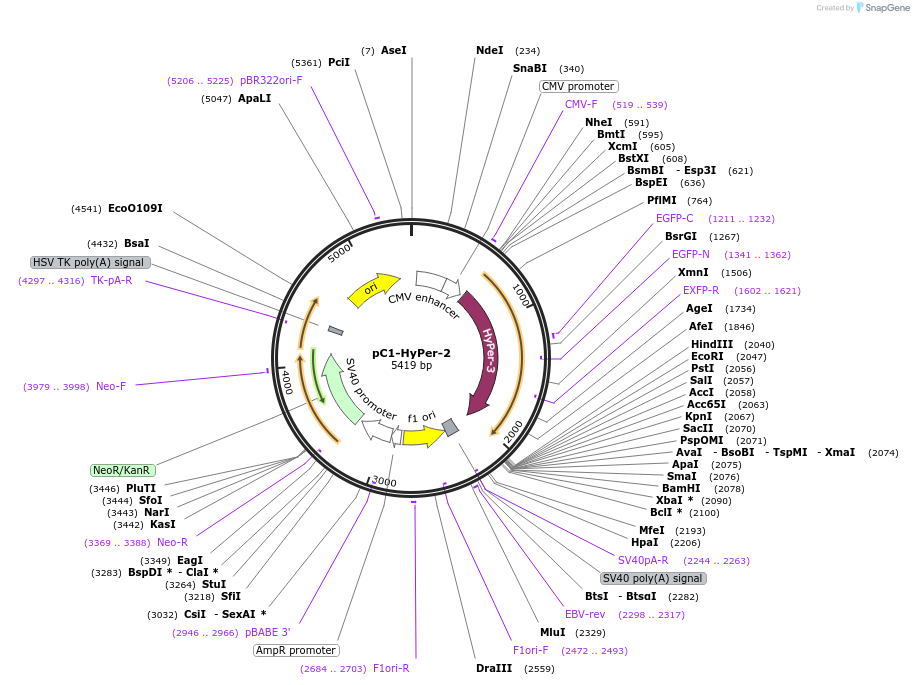

Backbone

  • Vector backbone
    pC1
  • Backbone size w/o insert (bp) 3982
  • Total vector size (bp) 5419
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    XL1 Blue
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    HYPER 2
  • Species
    Synthetic
  • Insert Size (bp)
    1437
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NheI (not destroyed)
  • 3′ cloning site HindIII (not destroyed)
  • 5′ sequencing primer cggtgggaggtctatataag
  • 3′ sequencing primer tgggaggttttttaaagcaag
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pC1-HyPer-2 was a gift from Vsevolod Belousov (Addgene plasmid # 42211 ; http://n2t.net/addgene:42211 ; RRID:Addgene_42211)

  • For your References section:

    A genetically encoded sensor for H2O2 with expanded dynamic range. Markvicheva KN, Bilan DS, Mishina NM, Gorokhovatsky AY, Vinokurov LM, Lukyanov S, Belousov VV. Bioorg Med Chem. 2011 Feb 1;19(3):1079-84. doi: 10.1016/j.bmc.2010.07.014. Epub 2010 Aug 5. 10.1016/j.bmc.2010.07.014 PubMed 20692175
