pAT253
(Plasmid #40943)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 40943 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pAFS135
  • Backbone manufacturer
    Andrew W. Murray Lab, UCSF (Straight, Sedat, & Murray, 1998. PMID: 9813090)
  • Backbone size w/o insert (bp) 4600

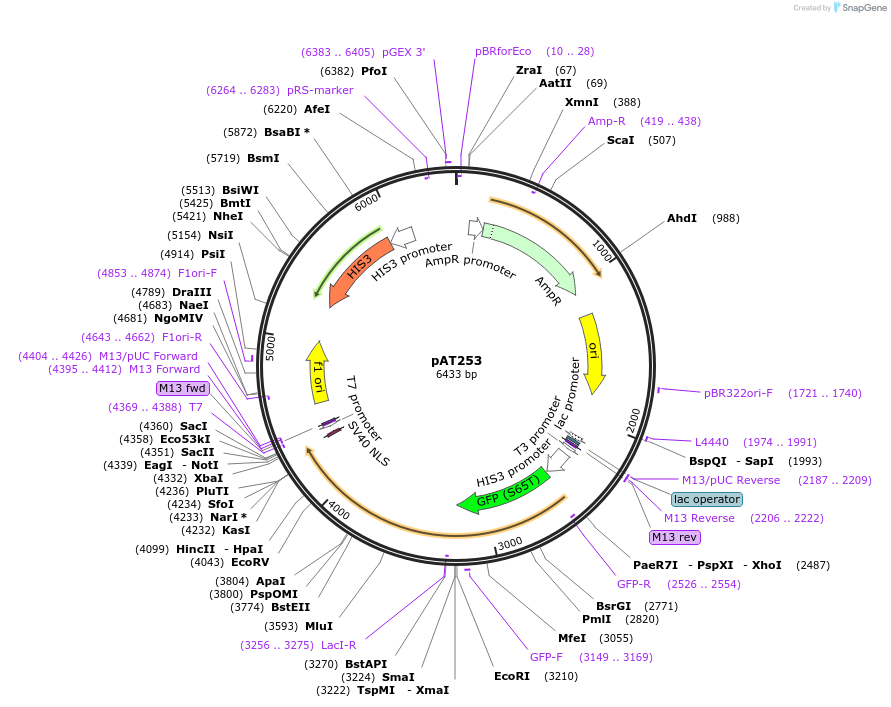

  • Total vector size (bp) 6433
  • Vector type
    Yeast Expression
  • Selectable markers
    HIS3

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    GFP-LacI**
  • Alt name
    GFP-LacI
  • Alt name
    LacI2G(4mutations)
  • Alt name
    LacI
  • Species
    E. coli
  • Insert Size (bp)
    1850
  • Mutation
    LacI**/LacI2G(4 mutations) (see comment below); lacI-I12 mutation (P3Y); C-terminal 11 amino acids deleted to prevent tetramerization
  • Promoter His3 promoter fragment
  • Tags / Fusion Proteins
    • GFP(S65T, V163A) (N terminal on insert)
    • SV40 NLS (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site XhoI (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer GFP-F, M13_pUC_rev
  • 3′ sequencing primer M13_pUC_fwd
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

The plasmid pAFS135 (Straight, Sedat, and Murray, 1998) contains GFP(S65T, V163A)-LacI(P3Y, del C-terminal 11 aa)-SV40 NLS under the control of a HIS3 promoter fragment. To construct pAT123, the HIS3 marker of AFS135 was replaced with a ScaI-DraIII fragment from RS405 containing LEU2 (a kind gift from Karine Dubrana and Susan Gasser).

The plasmid pAT222 (Addgene plasmid #40942) was obtained by site-directed mutagenesis of pAT123 to create GFP-LacI**, using the primers (base mutations in lowercase):

5’- GTGGCACAgCAACTGGCGGaCAAAggtggcggaTCGTTGCTGATTGGCGTTGCCtCCT-3’ and
5’- AGGaGGCAACGCCAATCAGCAACGAtccgccaccTTTGtCCGCCAGTTGcTGTGCCAC- 3’.

The LacI** variant was then subcloned into pAFS135 using NotI and XhoI restriction sites to create plasmid pAT253.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAT253 was a gift from Angela Taddei (Addgene plasmid # 40943 ; http://n2t.net/addgene:40943 ; RRID:Addgene_40943)
  • For your References section:

    Tight protein-DNA interactions favor gene silencing. Dubarry M, Loiodice I, Chen CL, Thermes C, Taddei A. Genes Dev. 2011 Jul 1;25(13):1365-70. 10.1101/gad.611011 PubMed 21724830
