pRMH122-LexA-CRY2PHR
(Plasmid
#40613)
-
PurposeExpresses LexA-CRY2PHR for light-inducible protein expression when coupled with VP16-CIB
-
Depositing Lab
-
Publication
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 40613 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepDBTrp
- Backbone size w/o insert (bp) 7000
- Total vector size (bp) 9224
-
Vector typeYeast Expression
-
Selectable markersTRP1
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameLexA-CRY2PHR
-
SpeciesA. thaliana (mustard weed)
-
Insert Size (bp)2193
- Promoter ADH1
Cloning Information
- Cloning method Unknown
- 5′ sequencing primer n/a (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pRMH122-LexA-CRY2PHR was a gift from Chandra Tucker (Addgene plasmid # 40613 ; http://n2t.net/addgene:40613 ; RRID:Addgene_40613) -
For your References section:
Light-mediated control of DNA transcription in yeast. Hughes RM, Bolger S, Tapadia H, Tucker CL. Methods. 2012 Aug 15. 10.1016/j.ymeth.2012.08.004 PubMed 22922268

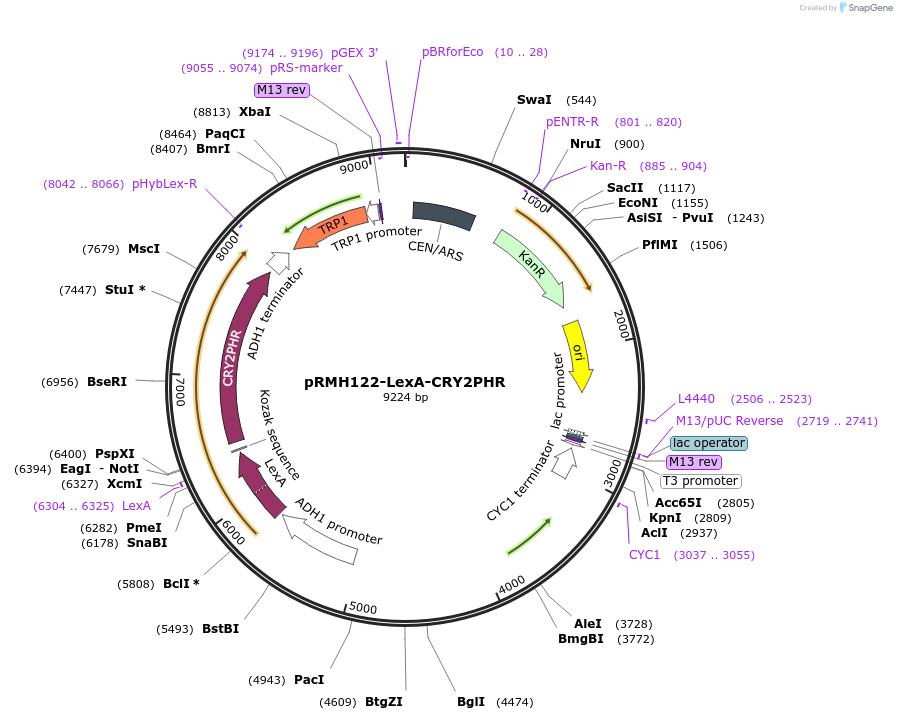

Map uploaded by the depositor.
