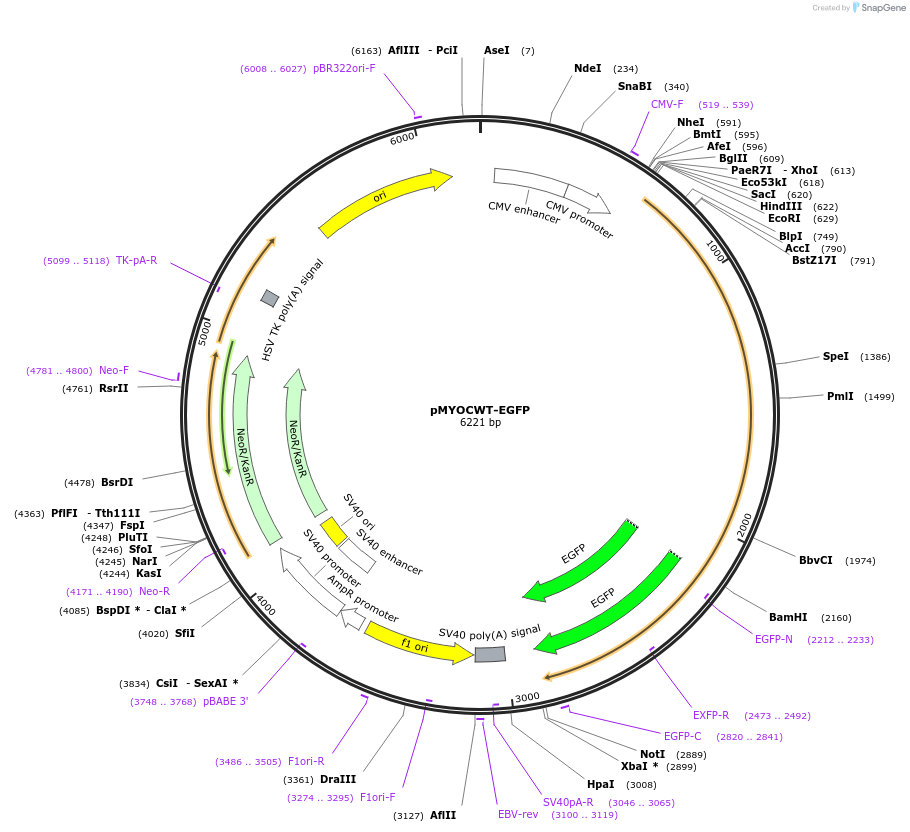

pMYOCWT-EGFP
(Plasmid #39326)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 39326 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pEGFP-N1
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 4733
  • Total vector size (bp) 6221
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Myocilin wild-type
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1527
  • Entrez Gene
    MYOC (a.k.a. GLC1A, GPOA, JOAG, JOAG1, TIGR)
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer CMV promoter forward
  • 3′ sequencing primer EGFP reverse
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pMYOCWT-EGFP was a gift from Beatrice Yue (Addgene plasmid # 39326 ; http://n2t.net/addgene:39326 ; RRID:Addgene_39326)
  • For your References section:

    Differential effects of myocilin and optineurin, two glaucoma genes, on neurite outgrowth. Koga T, Shen X, Park JS, Qiu Y, Park BC, Shyam R, Yue BY. Am J Pathol. 2010 Jan;176(1):343-52. Epub 2009 Dec 3. 10.2353/ajpath.2010.090194 PubMed 19959812
