pRAJ12m
(Plasmid
#39247)
-
Depositing Lab
-

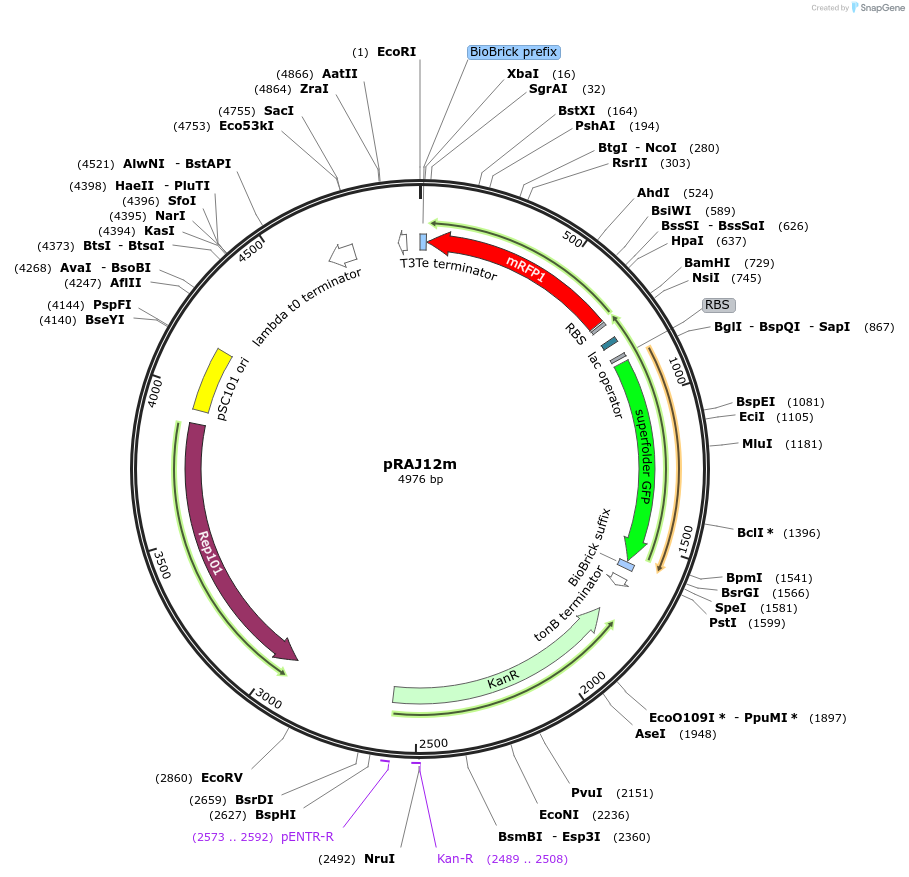

Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 39247 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepSTC1
-
Backbone manufacturerJaramillo Lab
- Backbone size w/o insert (bp) 4860
- Total vector size (bp) 4976
-
Vector typeBacterial Expression, Synthetic Biology
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert nameRAJ12 system (no transRNA)
- Promoter pLlacO-1
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site NheI (destroyed during cloning)
- 3′ cloning site AvrII (destroyed during cloning)
- 5′ sequencing primer tgccacctgacgtctaagaa
- 3′ sequencing primer attaccgcctttgagtgagc (Common Sequencing Primers)
Resource Information
-
A portion of this plasmid was derived from a plasmid made byhttp://partsregistry.org/Part:pSB4K5
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pRAJ12m was a gift from Alfonso Jaramillo (Addgene plasmid # 39247 ; http://n2t.net/addgene:39247 ; RRID:Addgene_39247) -
For your References section:
De novo automated design of small RNA circuits for engineering synthetic riboregulation in living cells. Rodrigo G, Landrain TE, Jaramillo A. Proc Natl Acad Sci U S A. 2012 Sep 18;109(38):15271-6. Epub 2012 Sep 4. 10.1073/pnas.1203831109 PubMed 22949707
