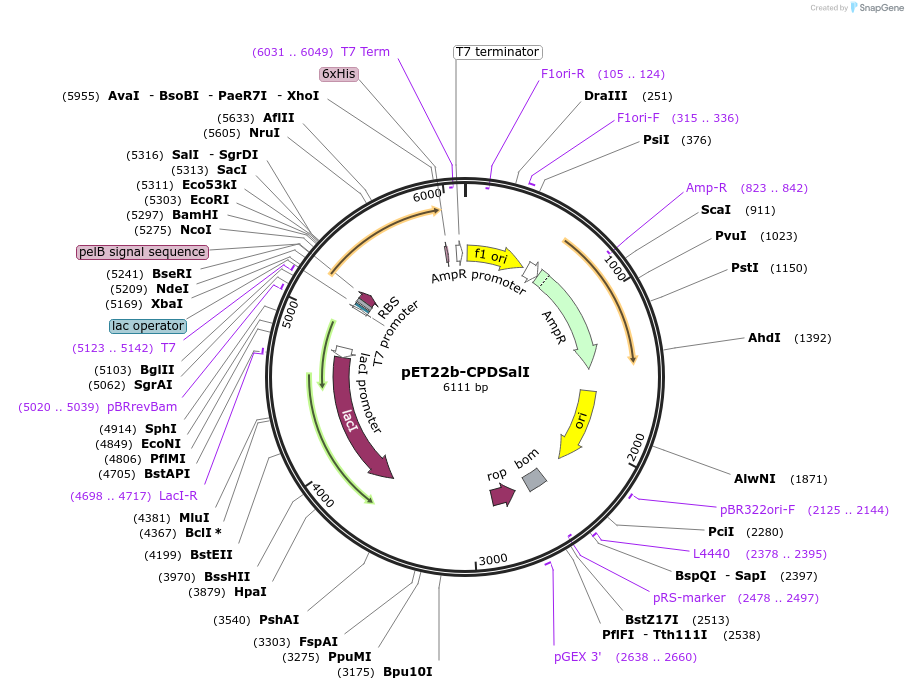

pET22b-CPDSalI
(Plasmid #38251)

• Purpose: (Empty Backbone)
• Depositing Labs: Matthew Bogyo, Aimee Shen
• Publication: Shen et al PLoS One. 2009 Dec 2;4(12):e8119.

Backbone

• Vector backbone: pET22b
• Backbone manufacturer: Novagen
• Backbone size (bp): 6126
• Modifications to backbone: Vibrio cholerae MARTX toxin (rtxA, vc1451) cysteine protease domain (CPD) (amino acids 3440-3650) cloned into SalI and XhoI sites in backbone to create fusions with target protein of interest
• Vector type: Bacterial Expression
• Tags / Fusion Proteins:
  • Vibrio cholerae MARTX toxin cysteine protease domain (CPD) (C terminal on backbone)
  • 6xHis (C terminal on backbone)

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: Low Copy

Gene/Insert

• Gene/Insert name: None
• GenBank ID:
• Promoter: T7

Cloning Information

• Cloning method: Unknown
• 5′ sequencing primer: T7
• 3′ sequencing primer: T7-term

Resource Information

• Article Citing this Plasmid:
  • 1 Reference

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

For protein purification, target protein of interest should be cloned into NdeI and SalI sites to create fusion with Vibrio cholerae MARTX toxin cysteine protease domain (CPD)
