pAV1997
(Plasmid #37831)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 37831 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

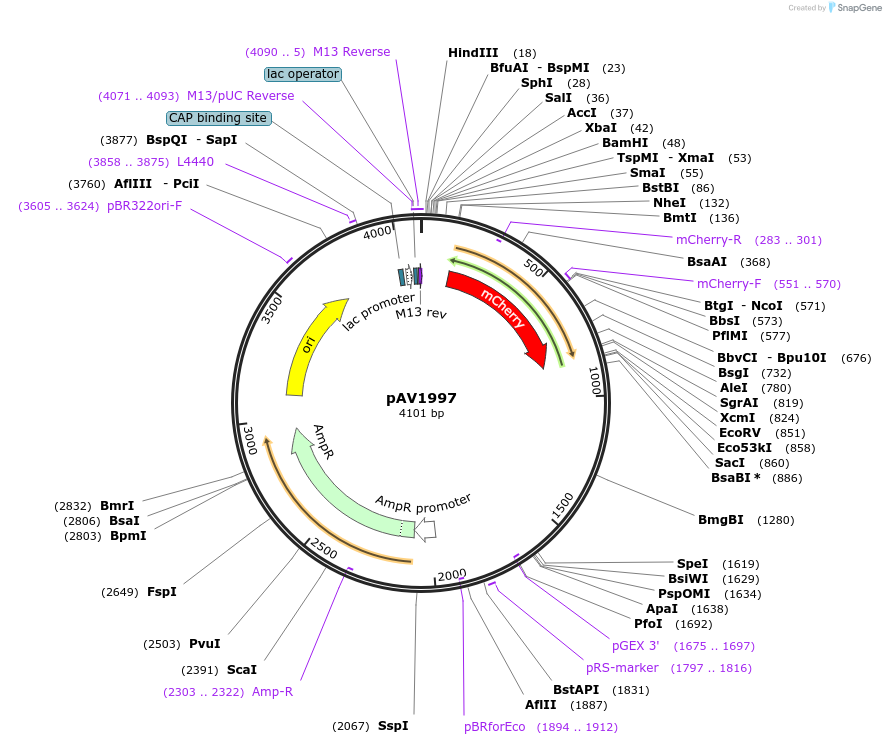

Backbone

  • Vector backbone
    pPD49.26
  • Backbone manufacturer
    Fire Lab
  • Backbone size w/o insert (bp) 3410
  • Total vector size (bp) 4101
  • Modifications to backbone
    mCherry cloned into NheI/EcoRV sites
  • Vector type
    Worm Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    XL10 Gold
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    mCherry
  • Insert Size (bp)
    711

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NheI (not destroyed)
  • 3′ cloning site EcoRV (not destroyed)
  • 5′ sequencing primer TATTATGCTAGCATGGTGAGCAAGGGCGAGGAG
  • 3′ sequencing primer ATATAAGATATCCTACTTGTACAGCTCGTCCATGCC
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAV1997 was a gift from Gary Silverman (Addgene plasmid # 37831 ; http://n2t.net/addgene:37831 ; RRID:Addgene_37831)

  • For your References section:

    A pro-cathepsin L mutant is a luminal substrate for endoplasmic-reticulum-associated degradation in C. elegans. Miedel MT, Graf NJ, Stephen KE, Long OS, Pak SC, Perlmutter DH, Silverman GA, Luke CJ. PLoS One. 2012;7(7):e40145. Epub 2012 Jul 2. 10.1371/journal.pone.0040145 PubMed 22768338
