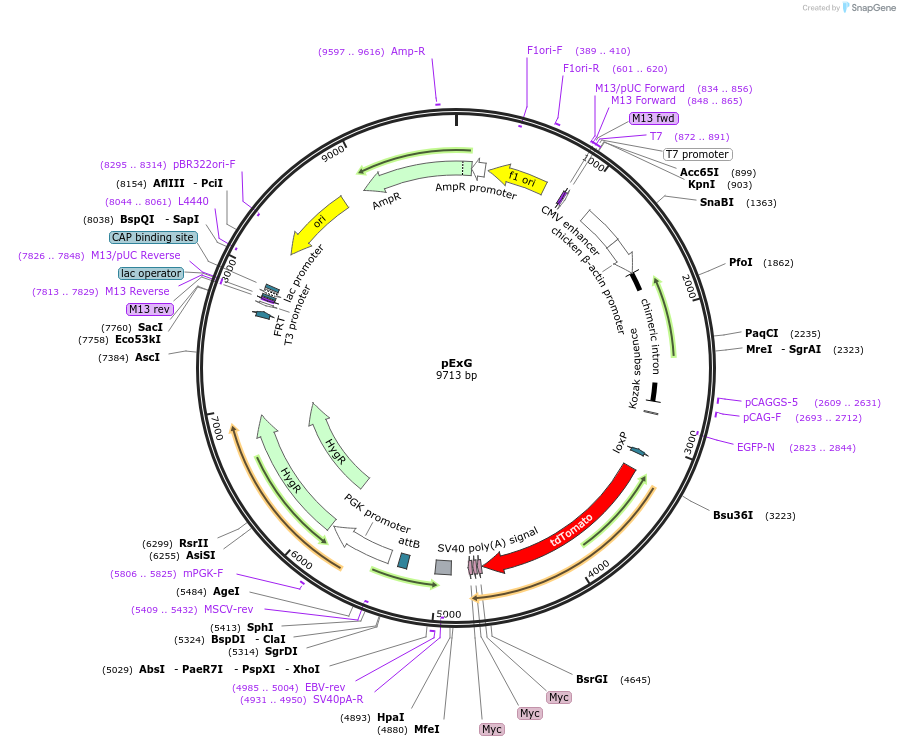

pExG
(Plasmid #36888)

• Depositing Lab: Liqun Luo
• Publication: Tasic et al PLoS One. 2012;7(3):e33332. Epub 2012 Mar 27.

Backbone

• Vector backbone: pBluescript SK(+)
• Backbone manufacturer: Stratagene
• Backbone size w/o insert (bp): 3000
• Total vector size (bp): 9713
• Vector type: Mammalian Expression
• Selectable markers: Hygromycin

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert 1

• Gene/Insert name: GFP
• Alt name: mut4EGFP
• Mutation: deleted nucleotides after nucleotide 274
• Promoter: CAG (chicken beta actin promoter and CMV enhancer)

Cloning Information for Gene/Insert 1

• Cloning method: Unknown
• 5′ sequencing primer: see sequence
• 3′ sequencing primer: see sequence

Gene/Insert 2

• Gene/Insert name: tdTomato-3Myc
• Alt name: tdT-3Myc
• Mutation: removed start codon
• Promoter: CAG (chicken beta actin promoter and CMV enhancer)
• Tag / Fusion Protein:
  • 3 Myc tags (C terminal on insert)

Cloning Information for Gene/Insert 2

• Cloning method: Unknown
• 5′ sequencing primer: see sequence
• 3′ sequencing primer: see sequence

Gene/Insert 3

• Gene/Insert name: beta-globin intron
• Mutation: insertion of a loxP site
• Promoter: CAG (chicken beta actin promoter and CMV enhancer)

Cloning Information for Gene/Insert 3

• Cloning method: Unknown
• 5′ sequencing primer: see sequence
• 3′ sequencing primer: see sequence

Gene/Insert 4

• Gene/Insert name: Hygro
• Alt name: hygromycin resistance gene
• Promoter: PGK (phosphoglycerate kinase promoter)

Cloning Information for Gene/Insert 4

• Cloning method: Unknown
• 5′ sequencing primer: see sequence
• 3′ sequencing primer: see sequence

Resource Information

• Supplemental Documents:
  • pExG_GenBank_file
• A portion of this plasmid was derived from a plasmid made by: R. Tsien

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
  • Takara Bio Limited Use Label License (formerly Clontech)
• Industry Terms:
  • Not Available to Industry
