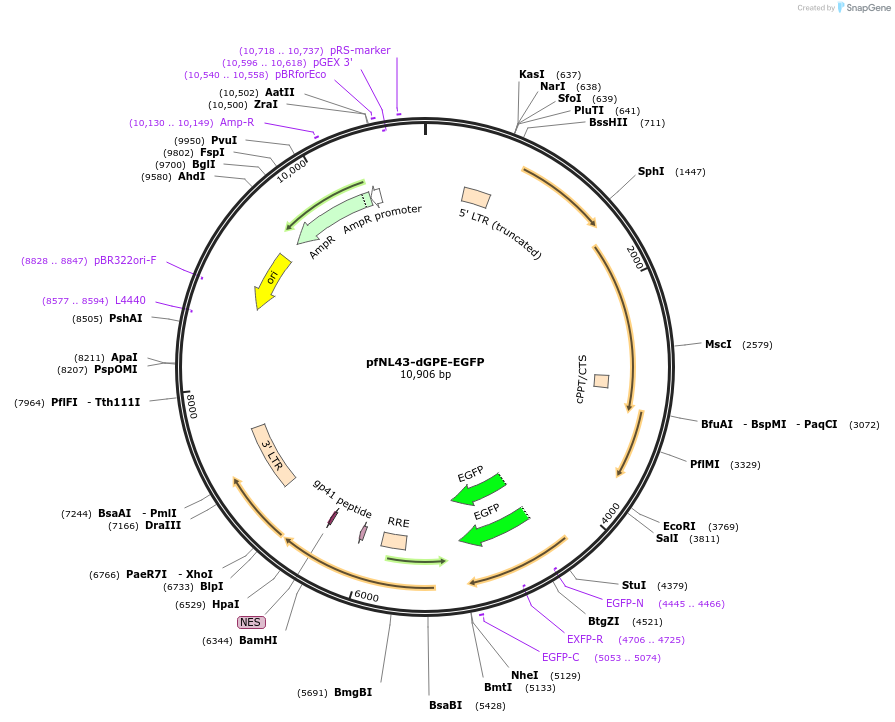

pfNL43-dGPE-EGFP
(Plasmid #36866)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 36866 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pUC18
  • Backbone size w/o insert (bp) 2686
  • Total vector size (bp) 10906
  • Vector type
    Mammalian Expression, Lentiviral, Retroviral

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    XL10 Gold
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    NL43-dGPE-EGFP
  • Species
    HIV-I
  • Insert Size (bp)
    8220
  • Mutation
    parts of Gag and Pol were deleted and EGFP inserted after 6350 nucleotide of original NL43, which splits/inactivates viral envelope

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

This plasmid is based on pfNL43-dE-EGFP.

Addgene's sequencing results identified 4 nucleotide mismatches at bp# 1634 & 2223-2225 when compared to the full plasmid sequence provided by the depositing laboratory, are remnants of the deleted pol gene and are not a concern for the function of the plasmid. According to the depositing laboratory, this plasmid still produces infectious virus when gag, pol and env are supplied in trans.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pfNL43-dGPE-EGFP was a gift from Mario Chin (Addgene plasmid # 36866 ; http://n2t.net/addgene:36866 ; RRID:Addgene_36866)
