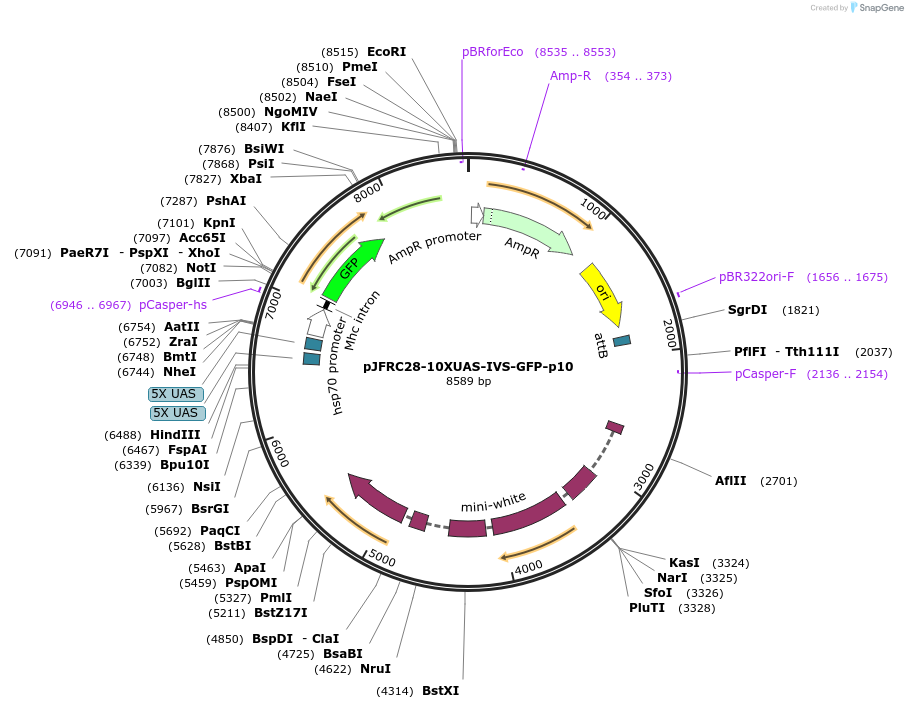

pJFRC28-10XUAS-IVS-GFP-p10
(Plasmid #36431)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 36431 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pJFRC-MUH
  • Backbone size w/o insert (bp) 8508
  • Total vector size (bp) 8589
  • Vector type
    Insect Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    GFP
  • Insert Size (bp)
    717

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site KpnI (not destroyed)
  • 3′ cloning site XbaI (not destroyed)
  • 5′ sequencing primer hsp70 F: GAGCGCCGGAGTATAAATAGAG
  • 3′ sequencing primer p10 R: CGGCCAAATGTTAAACTTGGAG
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pJFRC28-10XUAS-IVS-GFP-p10 was a gift from Gerald Rubin (Addgene plasmid # 36431 ; http://n2t.net/addgene:36431 ; RRID:Addgene_36431)

  • For your References section:

    Using translational enhancers to increase transgene expression in Drosophila. Pfeiffer BD, Truman JW, Rubin GM. Proc Natl Acad Sci U S A. 2012 Apr 9. 10.1073/pnas.1204520109 PubMed 22493255
