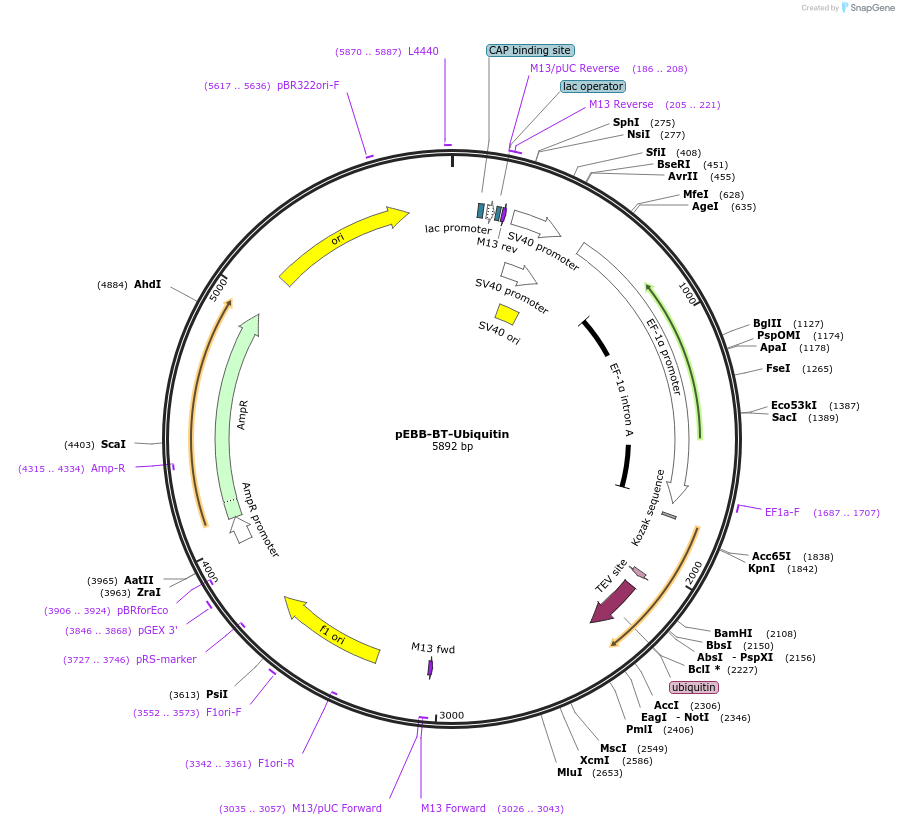

pEBB-BT-Ubiquitin
(Plasmid #36098)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 36098 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pEBB-TB
  • Backbone size w/o insert (bp) 5416
  • Total vector size (bp) 5894
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Ubiquitin
  • Alt name
    Ubi
  • Alt name
    RPS27A
  • Alt name
    UBC
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    228
  • Entrez Gene
    RPS27A (a.k.a. CEP80, HEL112, S27A, UBA80, UBC, UBCEP1, UBCEP80, eS31)
  • Promoter EF1a
  • Tag / Fusion Protein
    • TB-tag (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamH1 (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer ctcaagcctcagacagtgg
  • 3′ sequencing primer GAGGGGTGCAAGGACCCAG
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

After transfection into mammal cells, supplement fresh media with 4 uM Biotin and allow cells to grow for about 48 h before the purification procedures.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pEBB-BT-Ubiquitin was a gift from Ezra Burstein (Addgene plasmid # 36098 ; http://n2t.net/addgene:36098 ; RRID:Addgene_36098)
  • For your References section:

    A bimolecular affinity purification method under denaturing conditions for rapid isolation of a ubiquitinated protein for mass spectrometry analysis. Maine GN, Li H, Zaidi IW, Basrur V, Elenitoba-Johnson KS, Burstein E. Nat Protoc. 2010 Aug;5(8):1447-59. Epub 2010 Jul 22. 10.1038/nprot.2010.109 PubMed 20671728
