pBID-UASC-VG
(Plasmid #35206)

• Purpose: (Empty Backbone)
• Depositing Lab: Brian McCabe
• Publication: Wang et al PLoS One. 2012;7(7):e42102. Epub 2012 Jul 25.

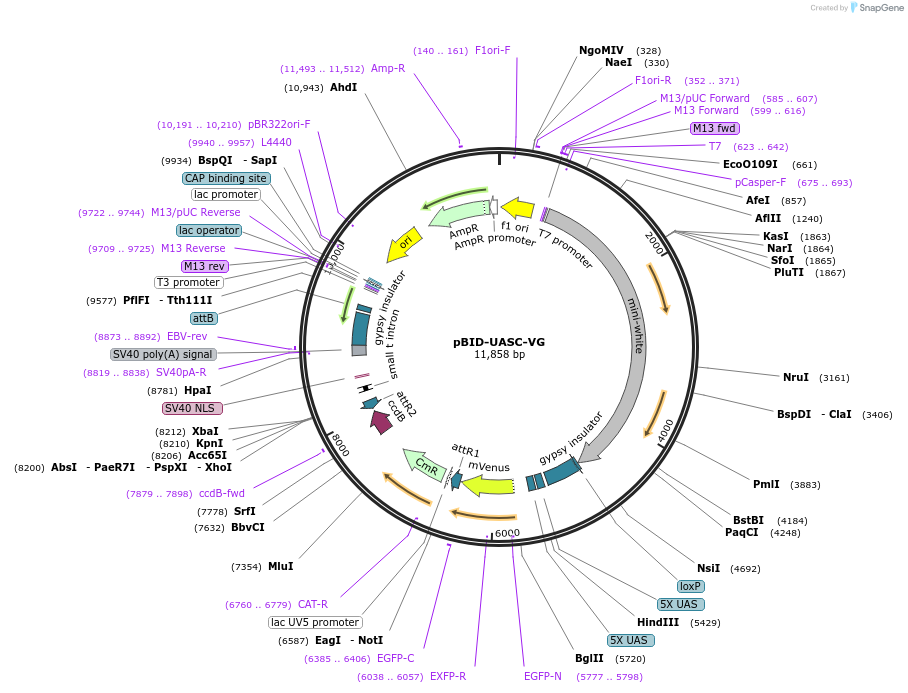

Backbone

• Vector backbone: pBID-UASC-VG
• Backbone manufacturer: Ji-Wu Wang and Brian McCabe
• Backbone size (bp): 11858
• Vector type: Drosophila Transgene Expression
• Promoter: Drosophila Synthetic Core Promoter (DSCP)
• Tag / Fusion Protein:
  • mVENUS (N terminal on backbone)

Growth in Bacteria

• Bacterial Resistance(s): Chloramphenicol and Ampicillin, 25 & 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): ccdB Survival
• Copy number: Unknown

Resource Information

• Addgene Notes:
  • Addgene Diagnostic Digest for 35206
• Articles Citing this Plasmid:
  • 2 References

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

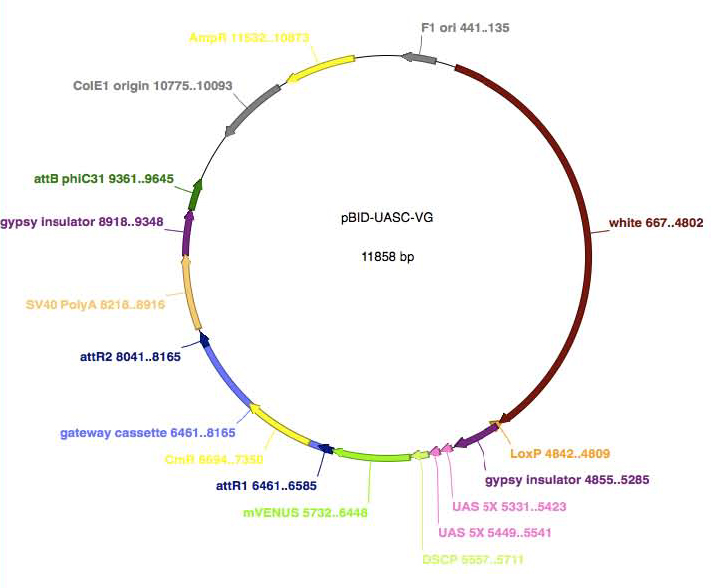

Generation of ϕC31 transgenic Drosophila for GAL4 driven expression of mVenus fusion transgenes. Gateway cloning cassette is flanked by gypsy insulator sequences to allow uniform transgene expression between insertion sites. 10 UAS binding sites, Drosophila Synthetic Core promoter (DSCP). mVenus is fused to the N-terminus of genes introduced by gateway. Transgene selection using white gene. loxP site facilitates elimination of transgene markers via Cre recombinase-mediated excision with ZH-attP landing sites. Ampicillin resistant. Chloramphenicol resistant for amplification.

Please see the associated publication for more information: Wang J-W, Beck ES, McCabe BD (2012) A Modular Toolset for Recombination Transgenesis and Neurogenetic Analysis of Drosophila. PLoS ONE 7(7): e42102 http://www.plosone.org/article/info:doi%2F10.1371%2Fjournal.pone.0042102
