pBID-UAS-GGi
(Plasmid
#35199)
-
Purpose(Empty Backbone)
-
Depositing Lab
-
Publication
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 35199 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepBID-UAS-GGi
-
Backbone manufacturerJi-Wu Wang and Brian McCabe
- Backbone size (bp) 13081
-
Vector typeDrosophila Transgene Expression
- Promoter UAS
Growth in Bacteria
-
Bacterial Resistance(s)Chloramphenicol and Ampicillin, 25 & 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)ccdB Survival
-
Copy numberUnknown
Resource Information
-
Addgene Notes
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments

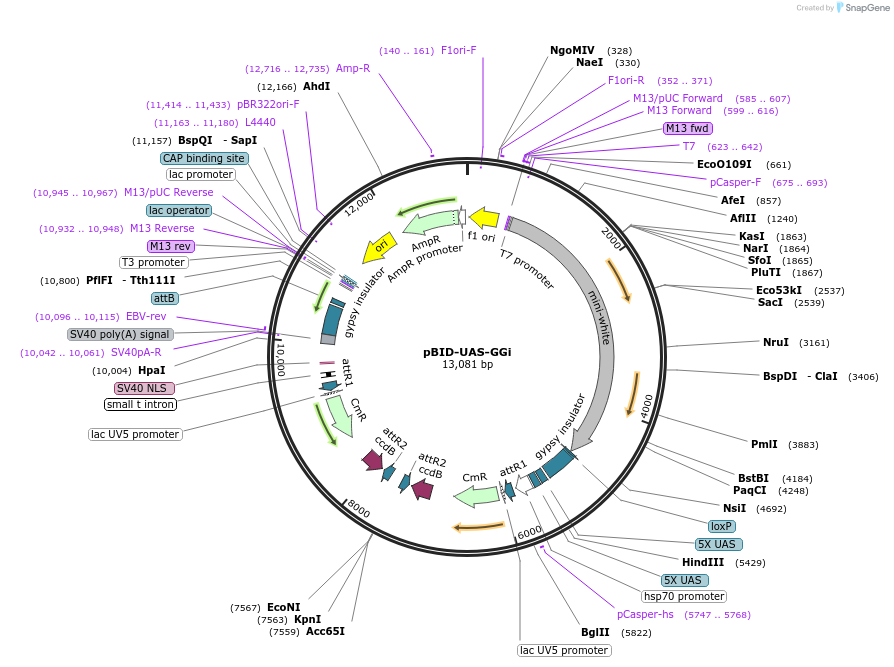

Generation of ϕC31 transgenic Drosophila for GAL4 driven RNA inhibition (RNAi). 2 inverted gateway cloning cassettes are flanked by gypsy insulator sequences to allow uniform transgene expression between insertion sites. 10 UAS binding sites, hsp70 basal promoter. ftz intron facilitates RNA hairpin formation and expression. Transgene selection using white gene. loxP site facilitates elimination of
transgene markers via Cre recombinasemediated
excision with ZH-attP landing sites. Ampicillin resistant. Chloramphenicol resistant for amplification.
Please note that the inverted sequences present can cause rearrangements of this vector. Recommend miniprep only and confirm plasmid map subsequent to amplification or cloning. After gateway recombination, recommend amplification in Stbl2 cells [Invitrogen Cat. 10268-019] and combining minipreps for Drosophila injection.
Addgene's sequencing results indicated a single nucleotide mismatch at bp# 5286 when compared to the full plasmid sequence provided by the depositing laboratory. This difference does not affect plasmid function.
Please see the associated publication for more information: Wang J-W, Beck ES, McCabe BD (2012) A Modular Toolset for Recombination Transgenesis and Neurogenetic Analysis of Drosophila. PLoS ONE 7(7): e42102 http://www.plosone.org/article/info:doi%2F10.1371%2Fjournal.pone.0042102
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pBID-UAS-GGi was a gift from Brian McCabe (Addgene plasmid # 35199 ; http://n2t.net/addgene:35199 ; RRID:Addgene_35199) -
For your References section:
A modular toolset for recombination transgenesis and neurogenetic analysis of Drosophila. Wang JW, Beck ES, McCabe BD. PLoS One. 2012;7(7):e42102. Epub 2012 Jul 25. 10.1371/journal.pone.0042102 PubMed 22848718
