Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 34927 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backboneN/A
-
Vector typeMammalian Expression, Mouse Targeting
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert 1
-
Gene/Insert nametau
-
SpeciesB. taurus (bovine)
-
Insert Size (bp)4274
-
Entrez GeneMAPT (a.k.a. tau)
- Promoter tetO
-
Tag
/ Fusion Protein
- LacZ (C terminal on insert)
Cloning Information for Gene/Insert 1
- Cloning method Restriction Enzyme
- 5′ cloning site N/A (unknown if destroyed)
- 3′ cloning site N/A (unknown if destroyed)
- 5′ sequencing primer LNCX
- 3′ sequencing primer LacZ-R (Common Sequencing Primers)
Gene/Insert 2
-
Gene/Insert nametTA
-
Insert Size (bp)468
-
MutationMade doxycycline insensitive by introduction of a point mutation (H100Y) in the Tet binding domain
- Promoter tetO
Cloning Information for Gene/Insert 2
- Cloning method Restriction Enzyme
- 5′ cloning site N/A (unknown if destroyed)
- 3′ cloning site N/A (unknown if destroyed)
- 5′ sequencing primer BGH_rev (Common Sequencing Primers)
Resource Information
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments

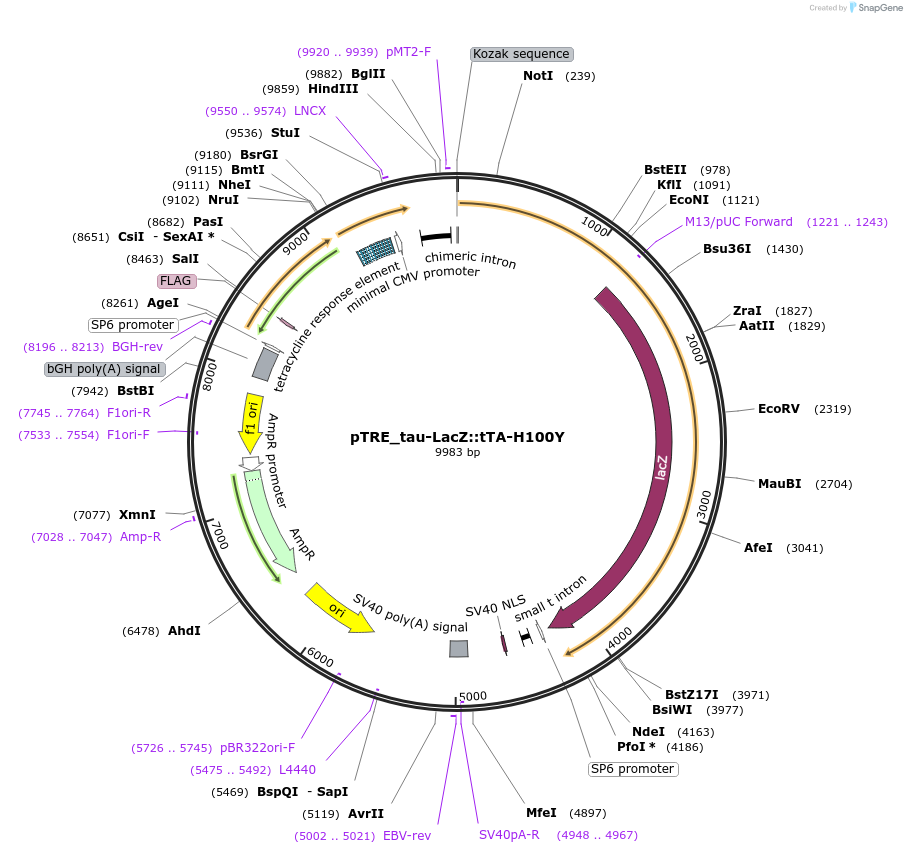

Contains a bi-cistronic tetO promoter that drives expression of tau-LacZ, as well as a tTA-H100Y that was made doxycycline insensitive by introduction of a point mutation (H100Y) in the Tet binding domain.
Also known as pAuto5.
Addgene NGS QC analysis identified a 54 bp deletion in the tau open reading frame, relative to the provided sequence from the depositing laboratory. Based on these NGS results, the tau ORF shows 100% identity to amino acids 1-382 of tau isoform X14 [Bos taurus] XP_024835348.1.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pTRE_tau-LacZ::tTA-H100Y was a gift from Mark Mayford (Addgene plasmid # 34927 ; http://n2t.net/addgene:34927 ; RRID:Addgene_34927) -
For your References section:
Localization of a stable neural correlate of associative memory. Reijmers LG, Perkins BL, Matsuo N, Mayford M. Science. 2007 Aug 31;317(5842):1230-3. 10.1126/science.1143839 PubMed 17761885
