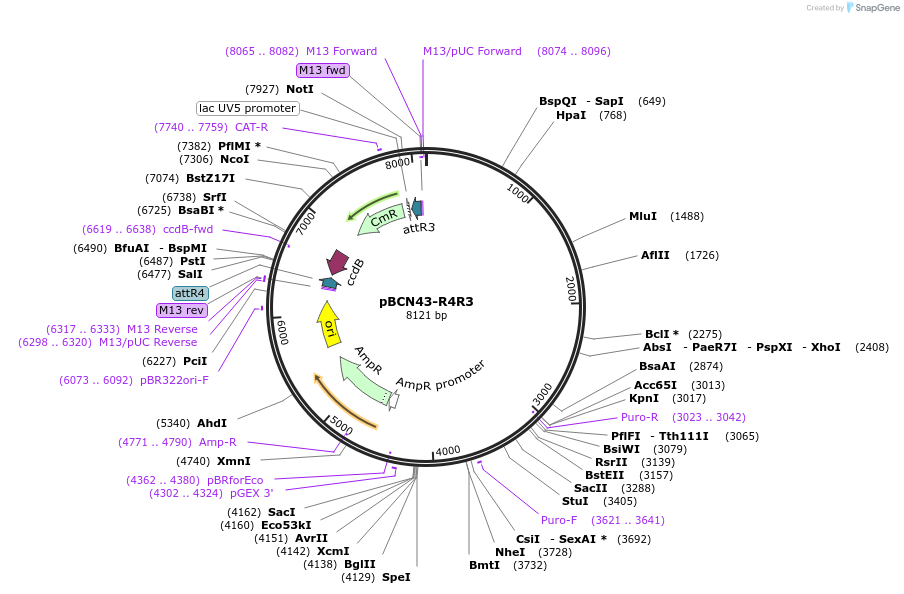

pBCN43-R4R3
(Plasmid #34918)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 34918 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pBCN21-R4R3
  • Modifications to backbone
    Spe I, Xcm I, Bgl II, Avr I and Sac I restriction sites introduced into backbone for linearisation, if necessary. The ccdB gene was replaced with a version from pDONR221 (Invitrogen) that is compatible with commercially available ccdB Survival E. coli, no longer requiring DB3.1 cells. Contains a new version of Pmyo-2::mCherry::myo-2_3'UTR transgene in the backbone that expresses well in various Caenorhabditis species.
  • Vector type
    Worm Expression
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Chloramphenicol and Ampicillin, 25 & 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    ccdB Survival
  • Growth instructions
    As a Gateway destination vector the empty vector must be grown in ccdB resistant cells such as DB3.1 or ccdB Survival. Use both Ampicillin and Chloramphenicol selection to avoid loss of the Gateway cassette. Once the Gateway cassette has been replaced with the gene of interest select with Ampicillin in standard E. coli strain such as Top10 or DH5alpha.
  • Copy number
    Unknown

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    Puromycin resistance gene from pBabePuro (Addgene). rpl-28 promoter and let-858 3'UTR sequences from pPD129.57 vector (Addgene). mCherry gene from pCFJ104 (Addgene).

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

New version of Puromycin resistance vector for drug selection in worms.
This vector replaces pBCN22-R4R3 (main advantage of the new vector is compatibility with ccdB Survival cells, and the visual marker that expresses well in non-elegans Caenorhabditis species).
This is a Gateway 3-fragment compatible destination vector. It contains AttR4 and AttR3 sites (not AttR1 and AttR2 sites as identified automatically by the Addgene algorithm).

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pBCN43-R4R3 was a gift from Ben Lehner (Addgene plasmid # 34918 ; http://n2t.net/addgene:34918 ; RRID:Addgene_34918)
  • For your References section:

    Generating transgenic nematodes by bombardment and antibiotic selection. Semple JI, Biondini L, Lehner B. Nat Methods. 2012 Jan 30;9(2):118-9. doi: 10.1038/nmeth.1864. 10.1038/nmeth.1864 PubMed 22290182
