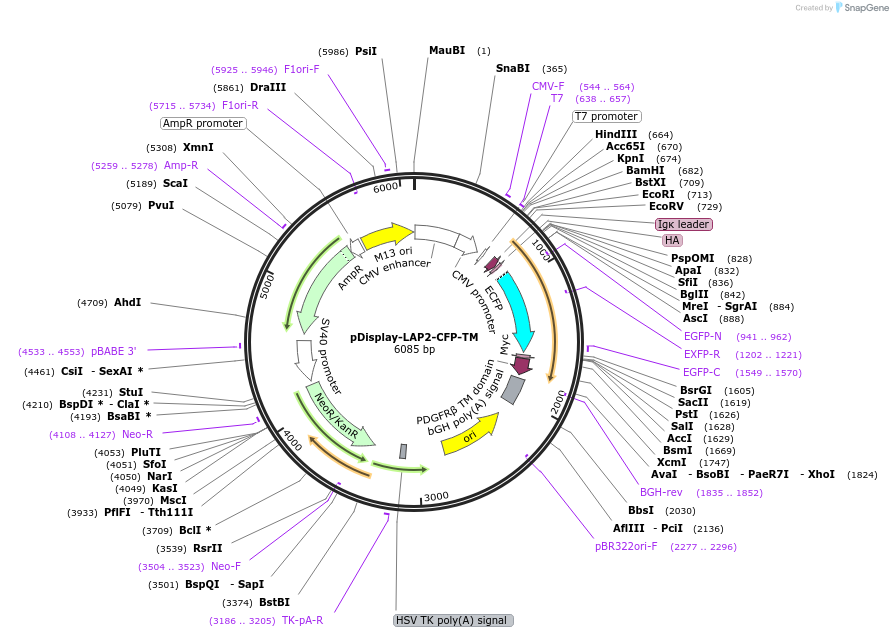

pDisplay-LAP2-CFP-TM
(Plasmid #34842)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 34842 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pDisplay
  • Backbone size w/o insert (bp) 5500
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    LAP2-CFP
  • Insert Size (bp)
    789
  • Promoter CMV
  • Tags / Fusion Proteins
    • HA (N terminal on backbone)
    • myc (C terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site ApaI (not destroyed)
  • 3′ cloning site SalI (not destroyed)
  • 5′ sequencing primer CMV.F
  • 3′ sequencing primer pDisplay.R
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pDisplay-LAP2-CFP-TM was a gift from Alice Ting (Addgene plasmid # 34842 ; http://n2t.net/addgene:34842 ; RRID:Addgene_34842)
