Addgene

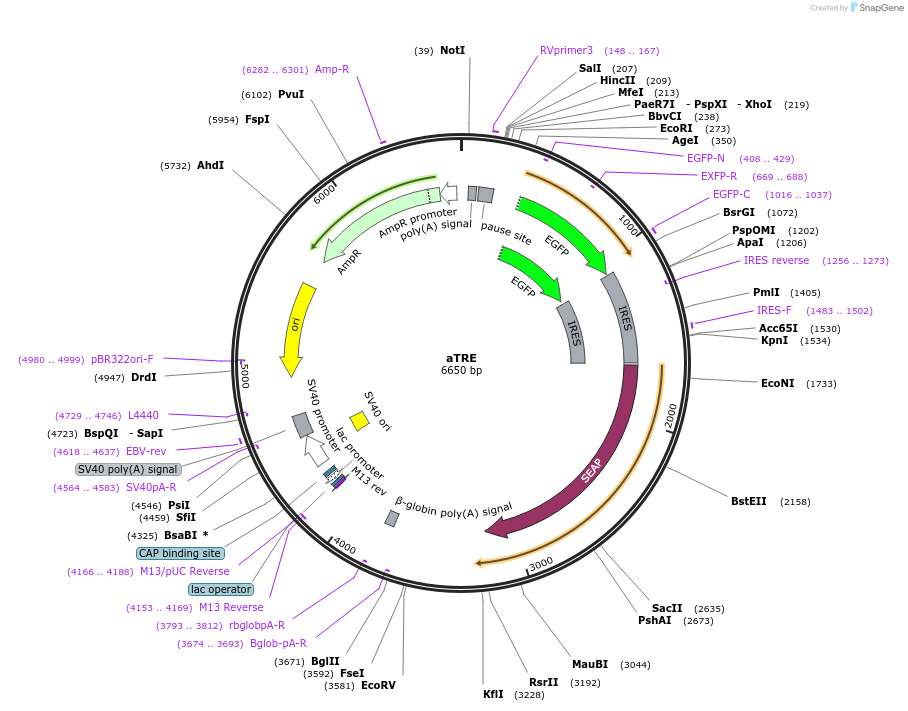

aTRE
(Plasmid #32612)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 32612 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    Stagia3
  • Backbone manufacturer
    Mark Emerson
  • Backbone size w/o insert (bp) 6610
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Thyroid Response Element
  • Alt name
    TRE
  • Species
    G. gallus (chicken)
  • Insert Size (bp)
    40

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site XhoI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer GTTCCGCGCACATTTCCCCG
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    aTRE was a gift from Connie Cepko (Addgene plasmid # 32612 ; http://n2t.net/addgene:32612 ; RRID:Addgene_32612)
  • For your References section:

    Analysis of thyroid response element activity during retinal development. Billings NA, Emerson MM, Cepko CL. PLoS One. 2010 . 5(10):e13739. 10.1371/journal.pone.0013739 PubMed 21060789
