pUCBB-lacZa
(Plasmid #32563)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 32563 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

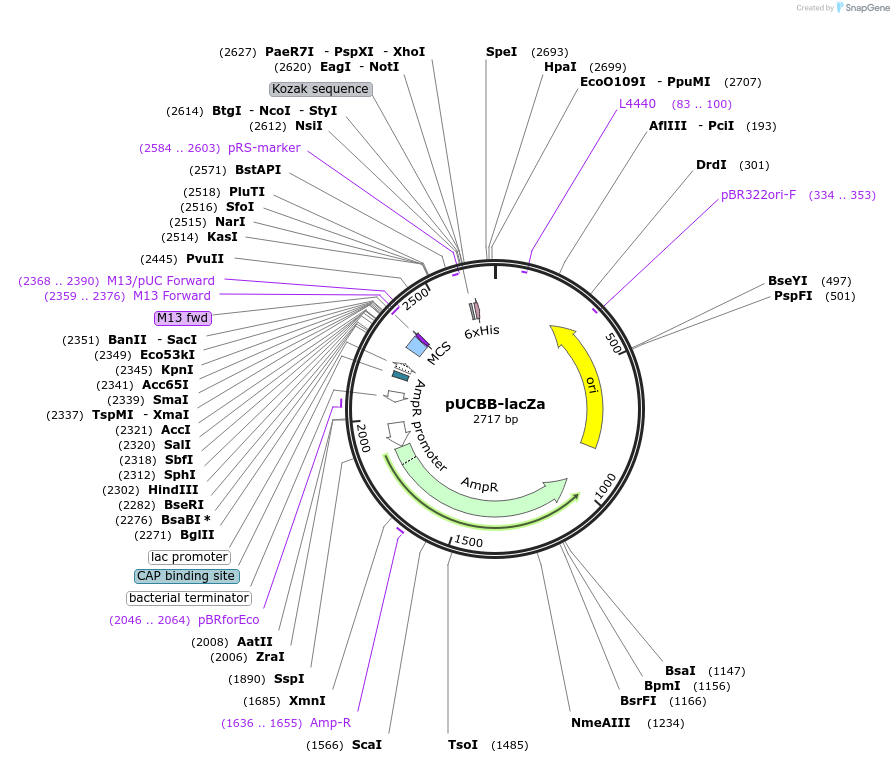

Backbone

  • Vector backbone
    pUCBB
  • Backbone size w/o insert (bp) 2393
  • Vector type
    Bacterial Expression, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    LacZ-alpha
  • Insert Size (bp)
    324
  • Promoter Consitutive lac
  • Tag / Fusion Protein
    • His (C terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NdeI (not destroyed)
  • 3′ cloning site NsiI (not destroyed)
  • 5′ sequencing primer pBBinF (CATCCTGAACTTATCTAGACC)
  • 3′ sequencing primer pBBinR (GCAGGTCCTGAAGTTAACTAG)
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pUCBB-lacZa was a gift from Claudia Schmidt-dannert (Addgene plasmid # 32563 ; http://n2t.net/addgene:32563 ; RRID:Addgene_32563)

  • For your References section:

    Optimized compatible set of BioBrick vectors for metabolic pathway engineering. Vick JE, Johnson ET, Choudhary S, Bloch SE, Lopez-Gallego F, Srivastava P, Tikh IB, Wawrzyn GT, Schmidt-Dannert C. Appl Microbiol Biotechnol. 2011 Dec;92(6):1275-86. Epub 2011 Oct 28. 10.1007/s00253-011-3633-4 PubMed 22033566
