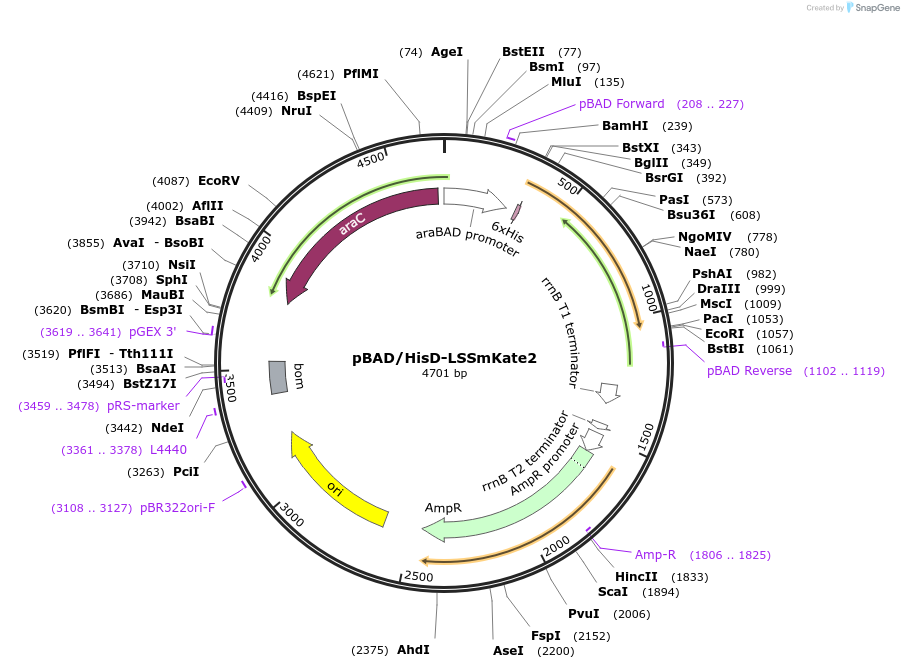

pBAD/HisD-LSSmKate2
(Plasmid #31909)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 31909 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pBAD/His-B
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 3999
  • Modifications to backbone
    Several amino acids between His-tag and LSSmKate2 were removed.
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    LSSmKate2
  • Insert Size (bp)
    708
  • Mutation
    K69Y/P131T/S148G/M167D/T183S/M196V compared to mKate but numbering is relative to EGFP.
  • Tag / Fusion Protein
    • HIS (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BglII (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer pBAD-fwd
  • 3′ sequencing primer pBAD-rev
  • (Common Sequencing Primers)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pBAD/HisD-LSSmKate2 was a gift from Vladislav Verkhusha (Addgene plasmid # 31909 ; http://n2t.net/addgene:31909 ; RRID:Addgene_31909)
  • For your References section:

    Monomeric red fluorescent proteins with a large Stokes shift. Piatkevich KD, Hulit J, Subach OM, Wu B, Abdulla A, Segall JE, Verkhusha VV. Proc Natl Acad Sci U S A. 2010 Mar 23;107(12):5369-74. Epub 2010 Mar 8. 10.1073/pnas.0914365107 PubMed 20212155
