HNF4A_P2-226
(Plasmid #31064)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 31064 Standard format: Plasmid sent in bacteria as agar stab 1 $85

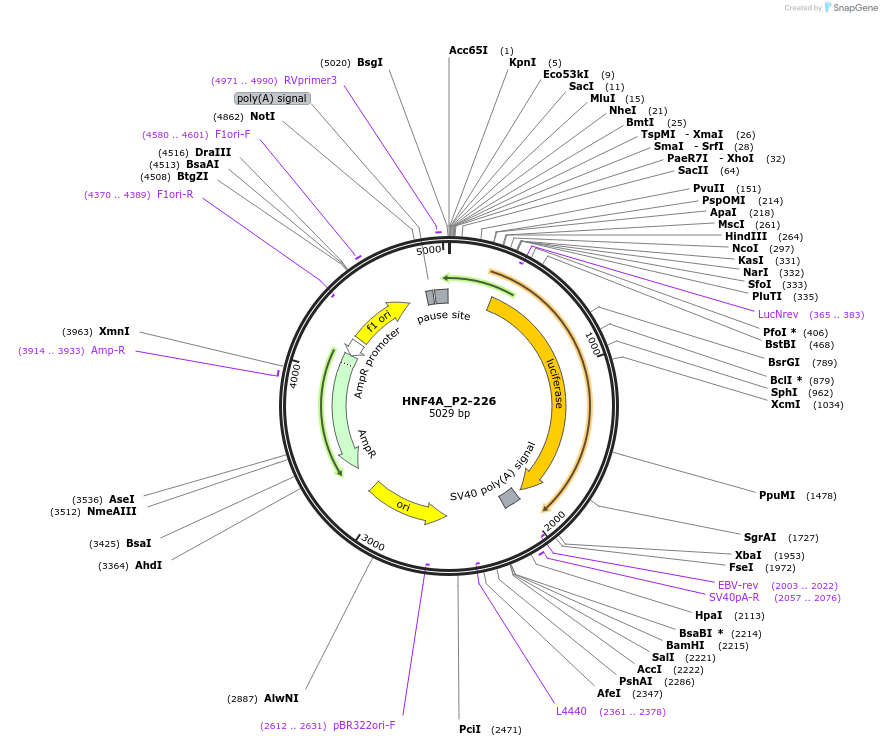

Backbone

  • Vector backbone
    pGL3-basic
  • Backbone manufacturer
    Promega
  • Backbone size w/o insert (bp) 4800
  • Vector type
    Mammalian Expression, Luciferase

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    HNF4A P2 promoter
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    226
  • Mutation
    -226 to -1 of P2 HNF4A promoter
  • Entrez Gene
    HNF4A (a.k.a. FRTS4, HNF4, HNF4a7, HNF4a8, HNF4a9, HNF4alpha, MODY, MODY1, NR2A1, NR2A21, TCF, TCF-14, TCF14)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site XhoI (not destroyed)
  • 3′ cloning site HindIII (not destroyed)
  • 5′ sequencing primer n/a
  • (Common Sequencing Primers)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    HNF4A_P2-226 was a gift from Gerhart Ryffel (Addgene plasmid # 31064 ; http://n2t.net/addgene:31064 ; RRID:Addgene_31064)
  • For your References section:

    A distant upstream promoter of the HNF-4alpha gene connects the transcription factors involved in maturity-onset diabetes of the young. Thomas H, Jaschkowitz K, Bulman M, Frayling TM, Mitchell SM, Roosen S, Lingott-Frieg A, Tack CJ, Ellard S, Ryffel GU, Hattersley AT. Hum Mol Genet. 2001 Sep 15. 10(19):2089-97. 10.1093/hmg/10.19.2089 PubMed 11590126
