Depositing Lab
-
Publication
-

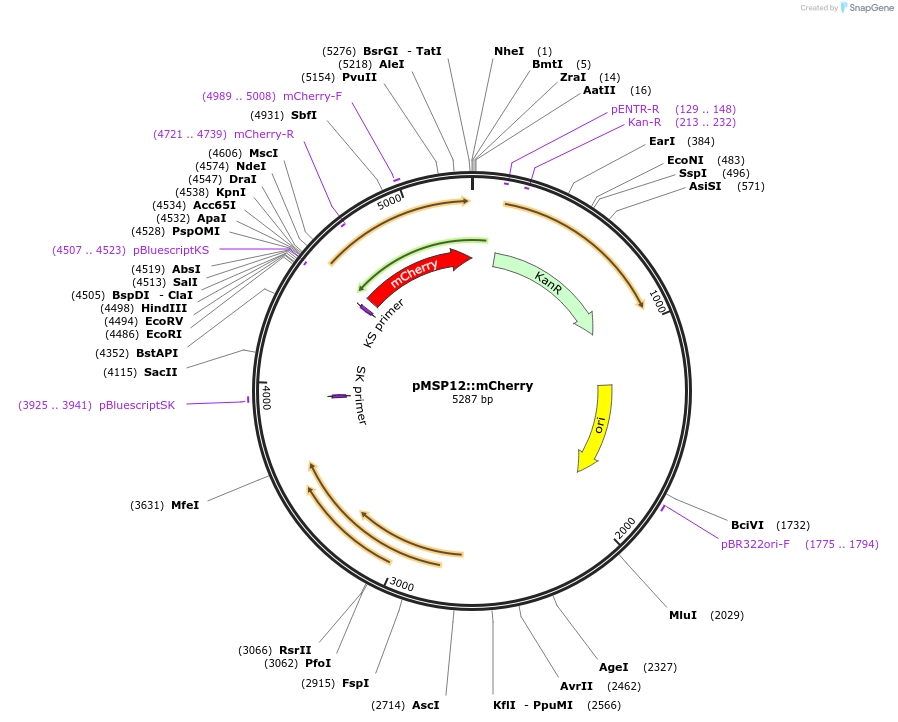

Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 30169 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepFPV27
-
Backbone manufacturerRamakrishnan et al., 2000
- Backbone size w/o insert (bp) 4981
-
Vector typeMycobacteria expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameMycobacterium Strong Promoter (MSP)
-
SpeciesM. marinum
-
Insert Size (bp)500
-
Tag
/ Fusion Protein
- mCherry (C terminal on backbone)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BamHI (unknown if destroyed)
- 3′ cloning site BamHI (unknown if destroyed)
- 5′ sequencing primer pFPV27-Fwd: GAATCGGTGGTTGTGGTGAT
- 3′ sequencing primer GFP-R (Common Sequencing Primers)
Resource Information
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
This plasmid was derived from pMSP12::GFP (Addgene plasmid # 30167) by replacing the GFP with mCherry.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pMSP12::mCherry was a gift from Lalita Ramakrishnan (Addgene plasmid # 30169 ; http://n2t.net/addgene:30169 ; RRID:Addgene_30169)
