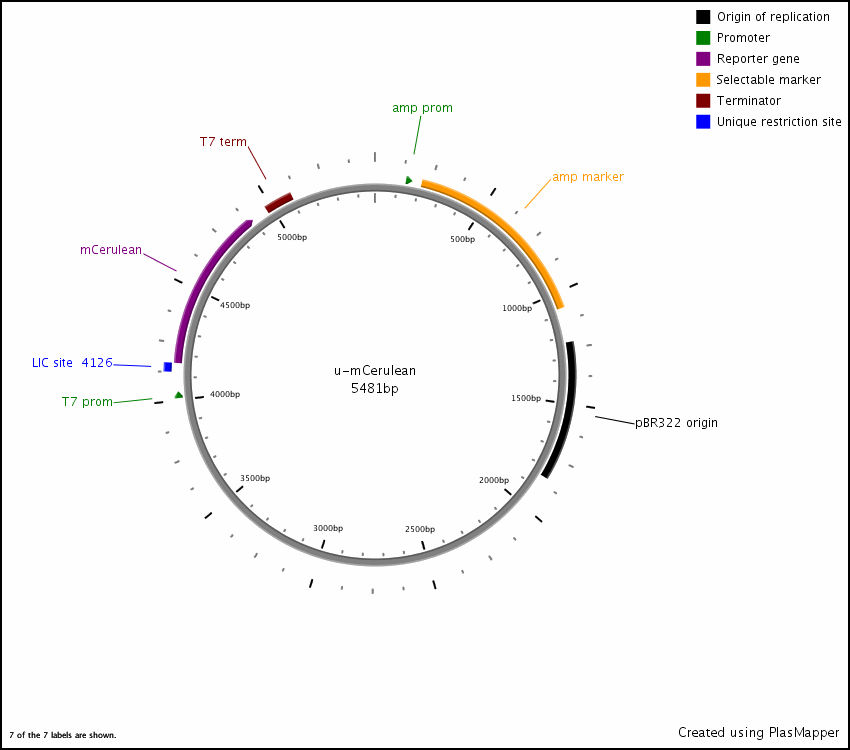

pET mCerulean LIC cloning vector (u-mCerulean)
(Plasmid #29773)

• Purpose: (Empty Backbone)
• Depositing Lab: Scott Gradia
• Publication: C-terminal fluorescent fusion vectors for E. coli expression (unpublished)

Backbone

• Vector backbone: pET
• Backbone size (bp): 5481
• Vector type: Bacterial Expression

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: Low Copy

Gene/Insert

• Gene/Insert name: None
• Tag / Fusion Protein:
  • mCerulean (C terminal on backbone)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: LIC site vuGFP (destroyed during cloning)
• 3′ cloning site: LIC site vuGFP (destroyed during cloning)
• 5′ sequencing primer: T7 forward
• 3′ sequencing primer: GFP reverse (5'gcaccttgaagcgcatgaact)

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

This plasmid is an empty vector. Your gene can be inserted with a LIC cloning protocol. This plasmid can be used as a single-expression vector, and it is also compatible with our 2-series polycistronic destination vectors (2D, 2E, and 2Z), if co-expression with other genes is desired.

mCerulean has a excitation max of 435 nm and an emission max of 477 nm.

To clone into this vector, add LIC tags to the 5' end of your PCR primers.

Forward - 5' TTTAAGAAGGAGATATAGATC3'

Reverse - 5' GTTGGAGGATGAGAGGATCCC 3'

Do NOT include a stop codon with your reverse primer.

Linearize the plasmid with EcoRV, then gel purify.

When digesting the DNA with T4 polymerase, use dGTP for the insert and dCTP for your linearized vector.

More information on this vector can be found through http://qb3.berkeley.edu/qb3/macrolab/
