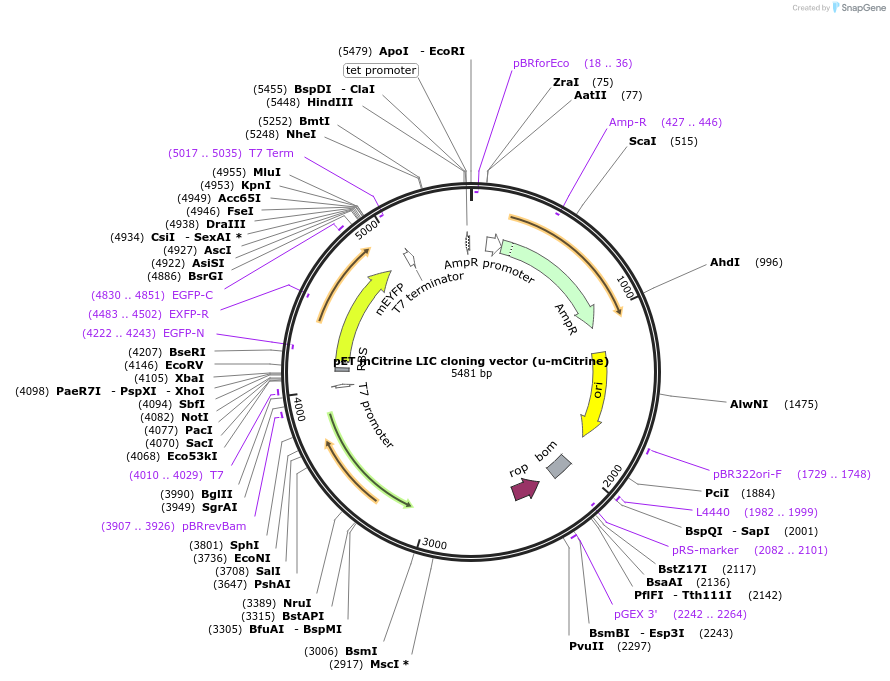

pET mCitrine LIC cloning vector (u-mCitrine)
(Plasmid #29771)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 29771 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pET
  • Backbone size (bp) 5481
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    None
  • Tag / Fusion Protein
    • mCitrine (C terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site LIC site vuGFP (destroyed during cloning)
  • 3′ cloning site LIC site vuGFP (destroyed during cloning)
  • 5′ sequencing primer T7 forward
  • 3′ sequencing primer GFP reverse (5'gcaccttgaagcgcatgaact)
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

This plasmid is an empty vector. Your gene can be inserted with a LIC cloning protocol. This plasmid can be used as a single-expression vector, and it is also compatible with our 2-series polycistronic destination vectors (2D, 2E, and 2Z), if co-expression with other genes is desired.

mCitrine has a excitation max of 515 nm and an emission max of 529 nm.

To clone into this vector, add LIC tags to the 5' end of your PCR primers.

Forward - 5' TTTAAGAAGGAGATATAGATC3'

Reverse - 5' GTTGGAGGATGAGAGGATCCC 3'

Do NOT include a stop codon with your reverse primer.

Linearize the plasmid with EcoRV, then gel purify.

When digesting the DNA with T4 polymerase, use dGTP for the insert and dCTP for your linearized vector.

More information on this vector can be found through http://qb3.berkeley.edu/qb3/macrolab/

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pET mCitrine LIC cloning vector (u-mCitrine) was a gift from Scott Gradia (Addgene plasmid # 29771 ; http://n2t.net/addgene:29771 ; RRID:Addgene_29771)
