Purpose(Empty Backbone)
-
Depositing Lab
-
Publication
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 29644 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Cloning Grade DNA | 29644-DNA.cg | 2 µg of cloning grade DNA in Tris buffer | 1 | $105 |
Backbone
-

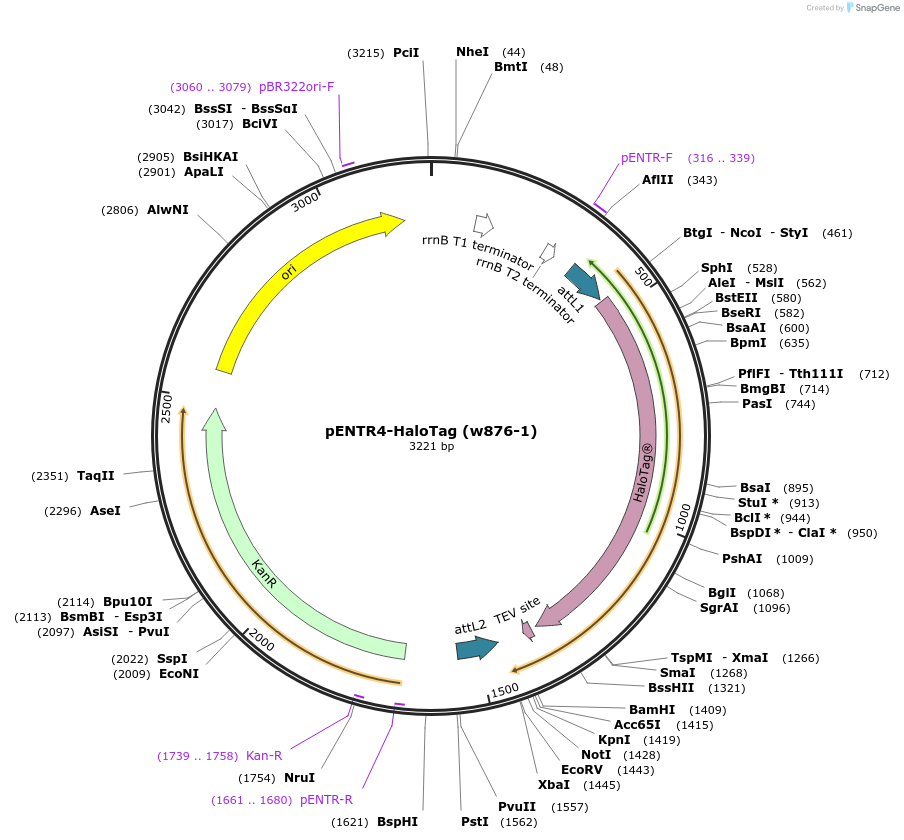

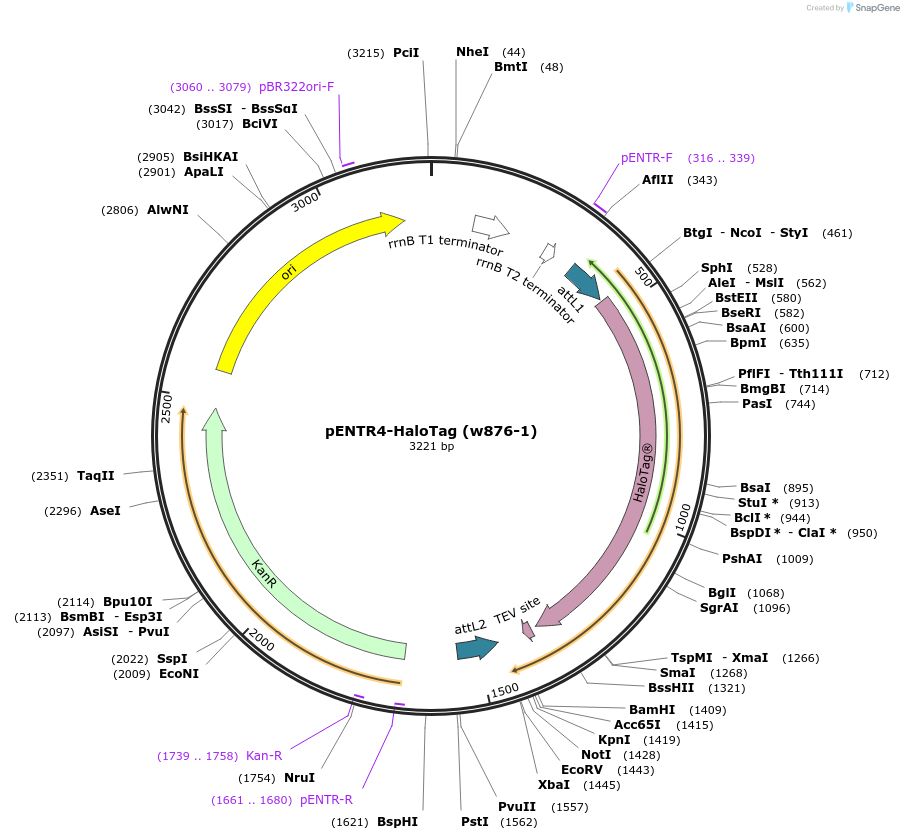

Vector backbonepENTR4
-
Backbone manufacturerInvitrogen
- Backbone size (bp) 3221
-
Vector typeEntry vector
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Growth instructionsTOP10F', 37oC
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameno insert
-
Tag
/ Fusion Protein
- HaloTag (N terminal on backbone)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site Nco I (not destroyed)
- 3′ cloning site Bam HI (not destroyed)
- 5′ sequencing primer ENTRforw
- 3′ sequencing primer ENTRrev (Common Sequencing Primers)
Resource Information
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Sequence verified, no further characterization.
Information for Cloning Grade DNA (Catalog # 29644-DNA.cg) ( Back to top)
Purpose
Cloning grade DNA is suitable for use in PCR, cloning reactions, or transformation into E. coli. The purity and amount is not suitable for direct transfections.
Delivery
- Amount 2 µg
- Guaranteed Concentration 100 ng/µl +/- 5 ng/µl
- Pricing $105 USD
- Storage DNA can be stored at 4℃ (short term) or -20℃ (long term).
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Addgene has verified this plasmid using Next Generation Sequencing. Results are available here
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pENTR4-HaloTag (w876-1) was a gift from Eric Campeau (Addgene plasmid # 29644 ; http://n2t.net/addgene:29644 ; RRID:Addgene_29644)
