Amph1-pmCherryN1
(Plasmid #27692)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 27692 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

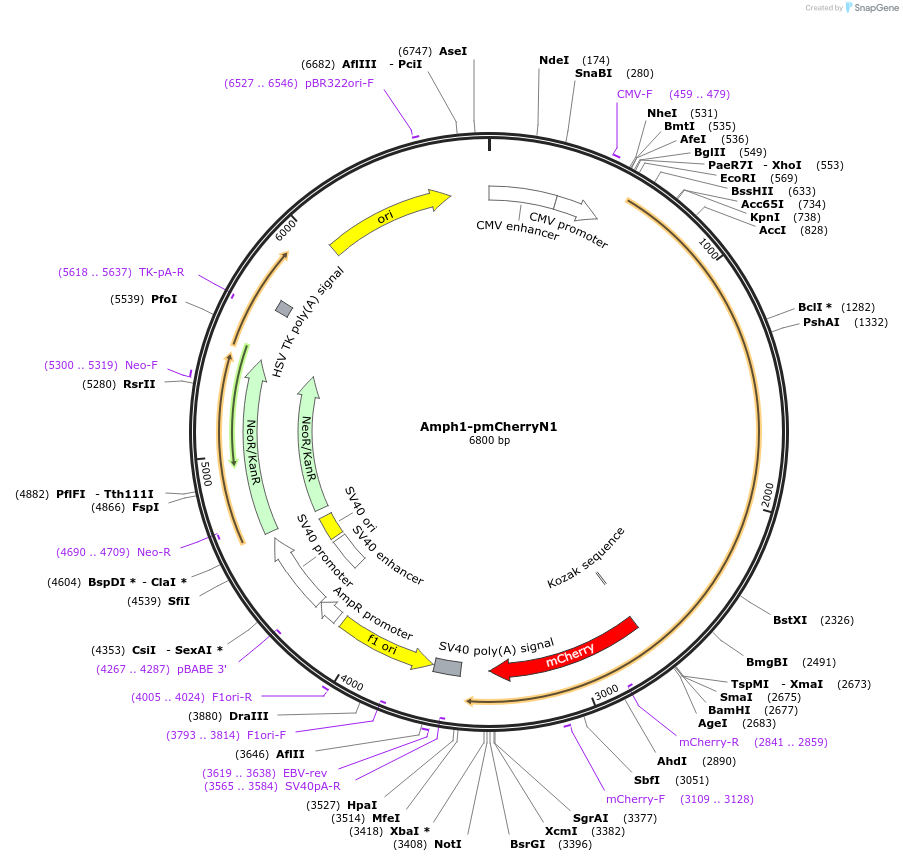

Backbone

  • Vector backbone
    pmCherry-N1
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 4722
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Amphiphysin 1
  • Species
    M. musculus (mouse)
  • Insert Size (bp)
    2100
  • Entrez Gene
    Amph
  • Tag / Fusion Protein
    • mCherry (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site XmaI (not destroyed)
  • 5′ sequencing primer CMV-F
  • 3′ sequencing primer mCherry-R 5'-TTGGTCACCTTCAGCTTGG
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Cloned from IMAGE clone: 5686478 (MGC:64773).

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    Amph1-pmCherryN1 was a gift from Christien Merrifield (Addgene plasmid # 27692 ; http://n2t.net/addgene:27692 ; RRID:Addgene_27692)

  • For your References section:

    A high precision survey of the molecular dynamics of Mammalian clathrin-mediated endocytosis. Taylor MJ, Perrais D, Merrifield CJ. PLoS Biol. 2011 Mar . 9(3):e1000604. 10.1371/journal.pbio.1000604 PubMed 21445324
