pXL-BACII-LoxP-3xPDsRed-LoxP
(Plasmid
#26852)
-
Depositing Lab
-
Publication
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 26852 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepXL-BACII
- Backbone size w/o insert (bp) 4556
-
Vector typeInsect Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameLoxP-3xPDsRed-LoxP
-
Insert Size (bp)677
Cloning Information
- Cloning method Restriction Enzyme
- 5′ sequencing primer dsRed1-N
- 3′ sequencing primer dsRed1-C (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
pXL-BACII transformation vector marked by a floxed eye expressing DsRed expression cassette. Cloning sites are EcoRV, SalI, XhoI.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pXL-BACII-LoxP-3xPDsRed-LoxP was a gift from Christopher Potter (Addgene plasmid # 26852 ; http://n2t.net/addgene:26852 ; RRID:Addgene_26852)

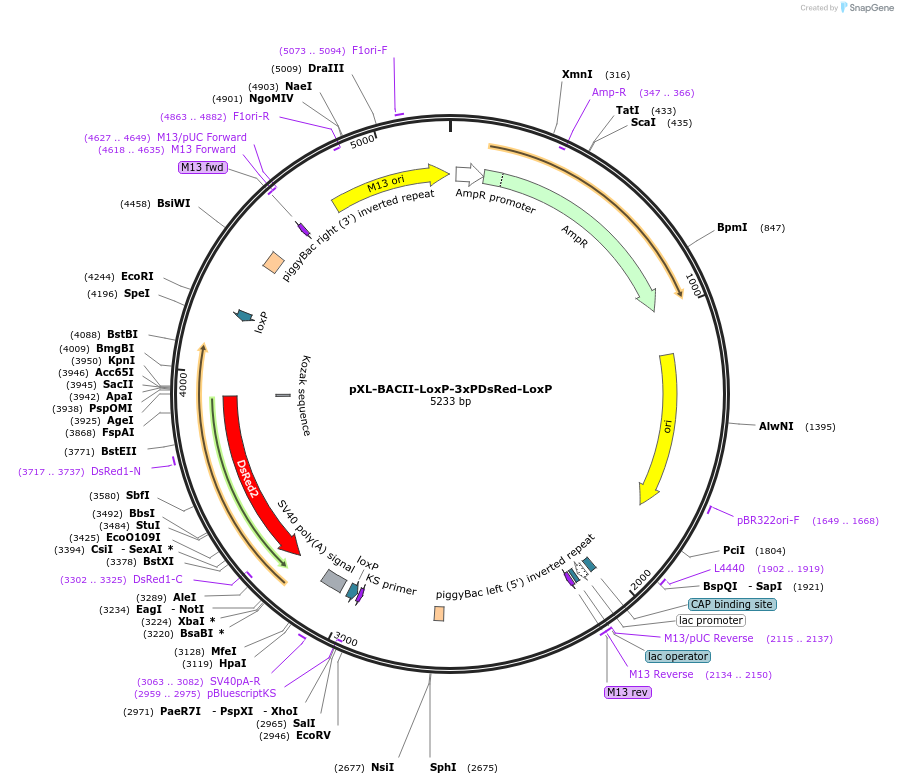

Map uploaded by the depositor.
