Depositing Lab
-

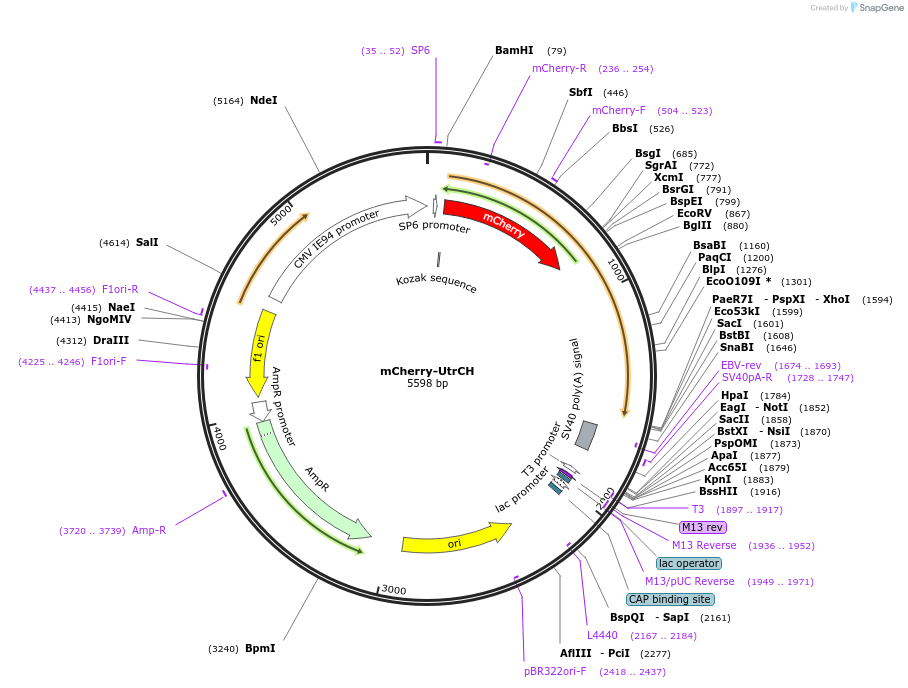

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 26740 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepCS2+
- Backbone size w/o insert (bp) 4097
-
Vector typeMammalian Expression ; reporter for F-actin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameUtrophin
-
Alt nameUtrCH
-
Speciesunknown
-
MutationCalponin homology domain of utrophin (aa# 1-261)
-
Tag
/ Fusion Protein
- mCherry (N terminal on insert)
Cloning Information
- Cloning method Unknown
- 5′ sequencing primer SP6
- 3′ sequencing primer EBV-rev (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
The calponin homology domain of utrophin (Utr-CH) was fused to mCherry in order to visualize F-actin.
mCherry R154 mutated (CGG to AGA) for optimal codon usage in Xenopus.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
mCherry-UtrCH was a gift from William Bement (Addgene plasmid # 26740 ; http://n2t.net/addgene:26740 ; RRID:Addgene_26740) -
For your References section:
Versatile fluorescent probes for actin filaments based on the actin-binding domain of utrophin. Burkel BM, von Dassow G, Bement WM. Cell Motil Cytoskeleton. 2007 Nov . 64(11):822-32. 10.1002/cm.20226 PubMed 17685442
