pBPHLWL-GAL4AD
(Plasmid #26255)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 26255 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

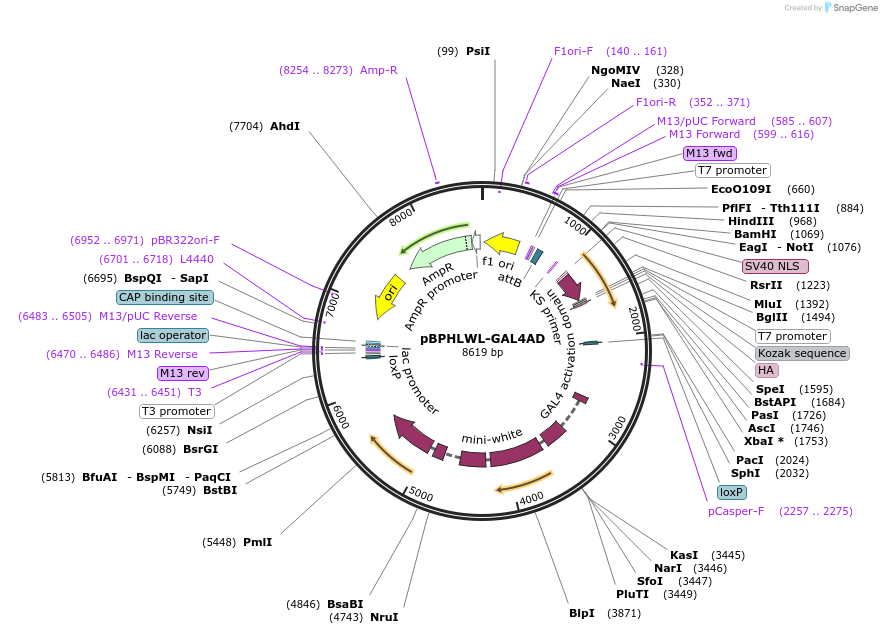

Backbone

  • Vector backbone
    pBPHLWL
  • Backbone size w/o insert (bp) 7963
  • Vector type
    Bacterial Expression ; Drosophila transgenesis

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Gal4AD-Zip+
  • Alt name
    GAL4AD-EE12RR345L
  • Alt name
    GAL4
  • Species
    S. cerevisiae (budding yeast)
  • Insert Size (bp)
    670
  • Entrez Gene
    GAL4 (a.k.a. YPL248C, GAL81)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NotI (not destroyed)
  • 3′ cloning site AscI (not destroyed)
  • 5′ sequencing primer CAGTGCACGTTTGCTTGTTGA
    • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    pActPL-Gal4AD (obtained from Addgene)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Luan et al. Neuron. 2006 Nov 9. 52(3):425-36.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pBPHLWL-GAL4AD was a gift from Tom Clandinin (Addgene plasmid # 26255 ; http://n2t.net/addgene:26255 ; RRID:Addgene_26255)

  • For your References section:

    A versatile in vivo system for directed dissection of gene expression patterns. Gohl DM, Silies MA, Gao XJ, Bhalerao S, Luongo FJ, Lin CC, Potter CJ, Clandinin TR. Nat Methods. 2011 Mar;8(3):231-7. doi: 10.1038/nmeth.1561. 10.1038/nmeth.1561 PubMed 21473015
