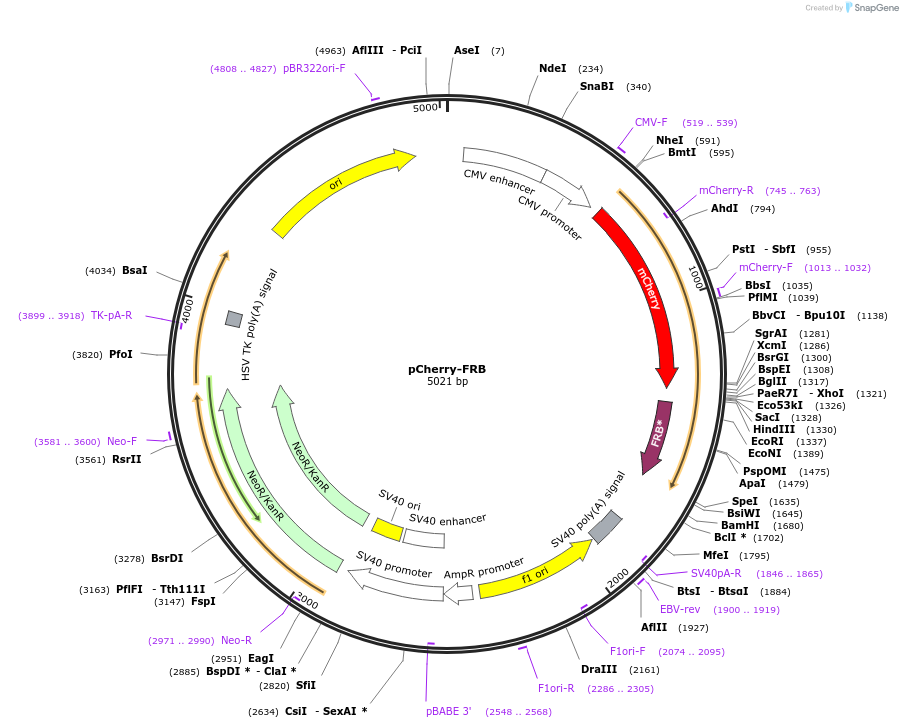

pCherry-FRB
(Plasmid #25920)

• Depositing Lab: Klaus Hahn
• Publication: Karginov et al Nat Biotechnol. 2010 Jun 27. ():.

Backbone

• Vector backbone: pCherry
• Backbone size w/o insert (bp): 3900
• Vector type: Mammalian Expression

Growth in Bacteria

• Bacterial Resistance(s): Kanamycin, 50 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: FRB
• Alt name: FKBP12-Rapamycin Binding domain of mTOR
• Species: H. sapiens (human)
• Insert Size (bp): 360
• Entrez Gene: MTOR (a.k.a. FRAP, FRAP1, FRAP2, RAFT1, RAPT1, SKS)
• Tag / Fusion Protein:
  • mCherry (N terminal on backbone)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: BglII (not destroyed)
• 3′ cloning site: BamHI (not destroyed)
• 5′ sequencing primer: CMV-Fw

Resource Information

• Articles Citing this Plasmid:
  • 3 References

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
  • Takara Bio Limited Use Label License (formerly Clontech)
• Industry Terms:
  • Not Available to Industry

Depositor Comments

FRB is a small domain derived from full length mTOR. In brief, rapamycin binds to a protein called FKBP12. Rapamycin bound to FKBP12 inhibits mTOR signaling
