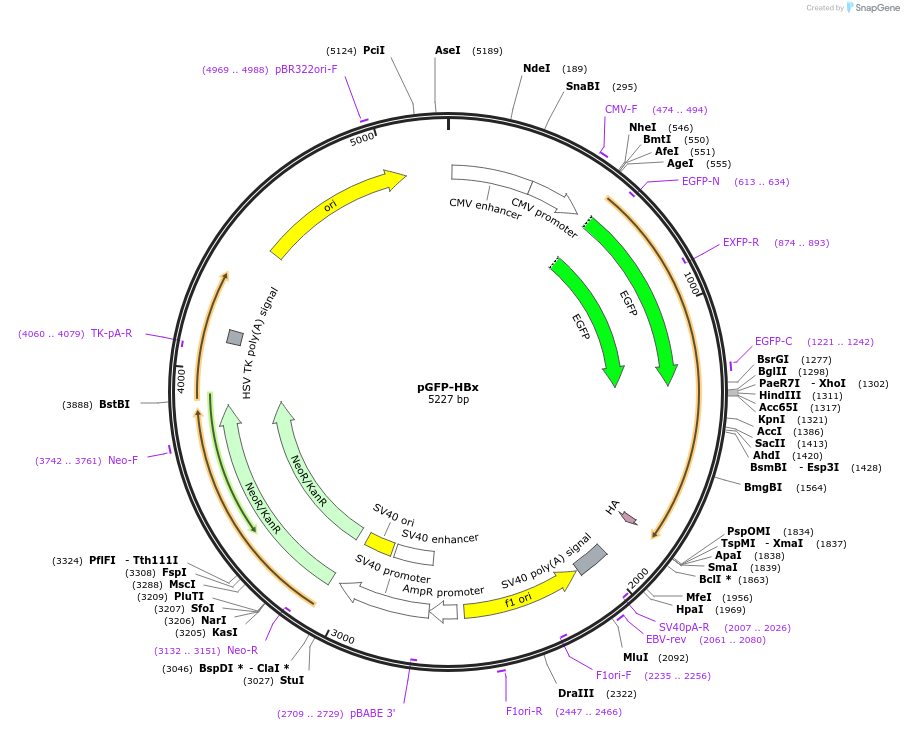

pGFP-HBx
(Plasmid #24931)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 24931 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pEGFP-C2
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 4700
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    HBx
  • Species
    HBV
  • Insert Size (bp)
    529
  • Tags / Fusion Proteins
    • EGFP (N terminal on insert)
    • HA (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site HindIII (not destroyed)
  • 3′ cloning site ApaI (not destroyed)
  • 5′ sequencing primer CMV-F, EGFP-C
  • 3′ sequencing primer SV40pA-R
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pGFP-HBx was a gift from Xin Wang (Addgene plasmid # 24931 ; http://n2t.net/addgene:24931 ; RRID:Addgene_24931)

  • For your References section:

    Interaction of the hepatitis B virus X protein with the Crm1-dependent nuclear export pathway. Forgues M, Marrogi AJ, Spillare EA, Wu CG, Yang Q, Yoshida M, Wang XW. J Biol Chem. 2001 Jun 22. 276(25):22797-803. 10.1074/jbc.M101259200 PubMed 11287420
