Addgene

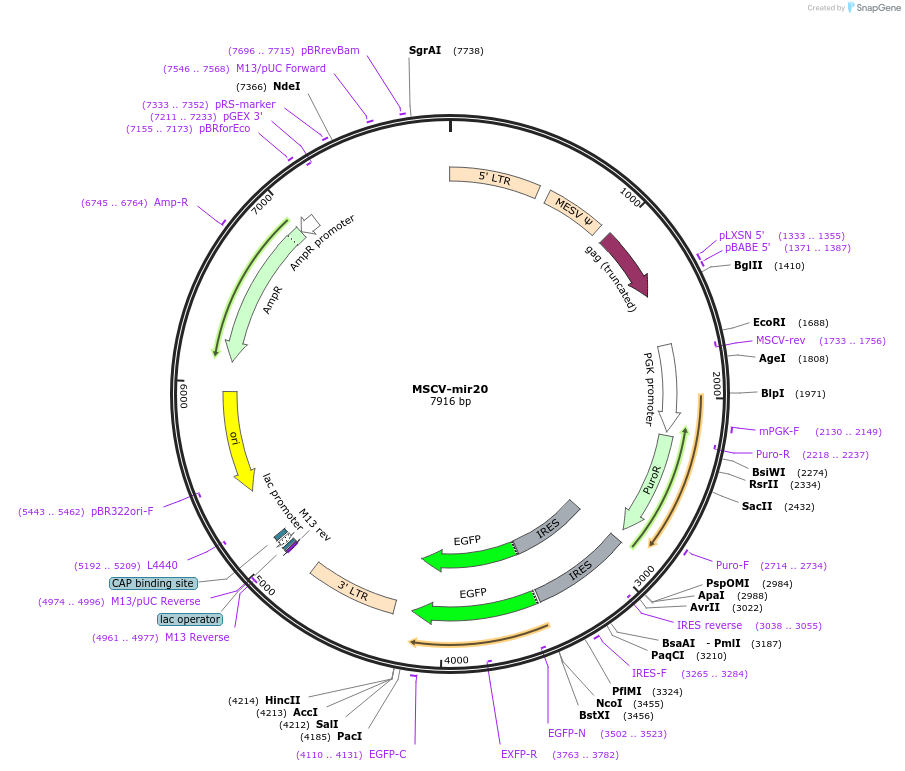

MSCV-mir20
(Plasmid #24709)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 24709 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    MSCV
  • Backbone size w/o insert (bp) 7651
  • Vector type
    Mammalian Expression, Retroviral
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    mir-20
  • Species
    H. sapiens (human), M. musculus (mouse)
  • Insert Size (bp)
    271
  • Entrez Gene
    MIR20A (a.k.a. C13orf25, MIR17HG, MIR20, MIRH1, MIRHG1, MIRN20, MIRN20A, hsa-mir-20, hsa-mir-20a, miR-20, miRNA20A, mir-20a)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BglII (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer pLXSN-5
  • 3′ sequencing primer MSCV-rev
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    MSCV-mir20 was a gift from Lin He (Addgene plasmid # 24709 ; http://n2t.net/addgene:24709 ; RRID:Addgene_24709)

  • For your References section:

    miR-19 is a key oncogenic component of mir-17-92. Olive V, Bennett MJ, Walker JC, Ma C, Jiang I, Cordon-Cardo C, Li QJ, Lowe SW, Hannon GJ, He L. Genes Dev. 2009 Dec 15. 23(24):2839-49. 10.1101/gad.1861409 PubMed 20008935
Related items:
Commonly requested with:
