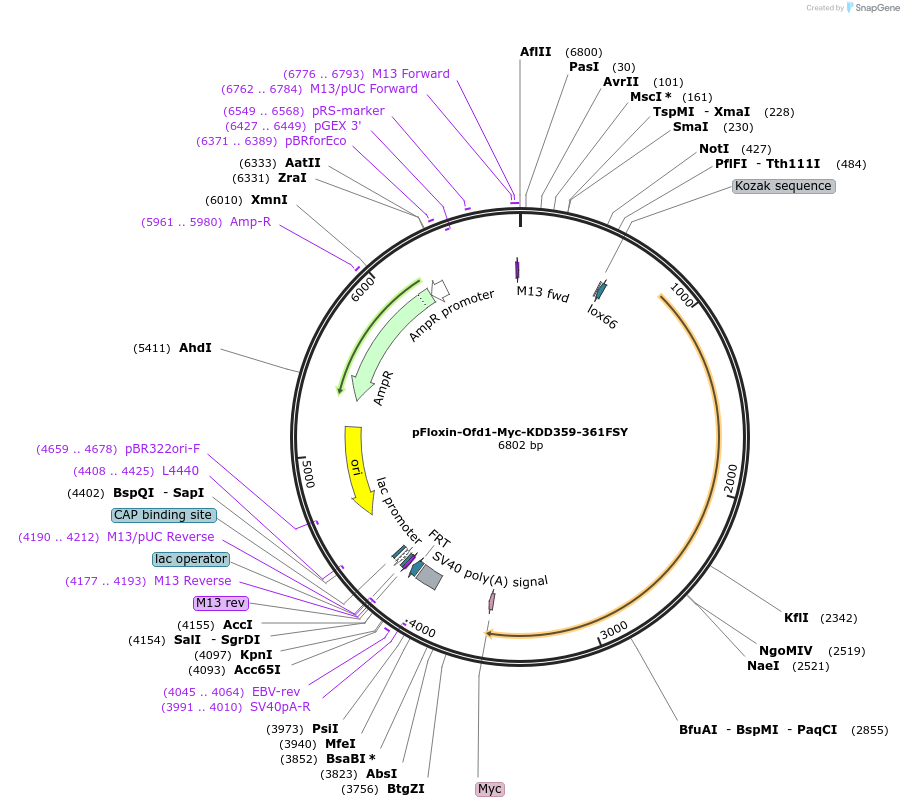

pFloxin-Ofd1-Myc-KDD359-361FSY
(Plasmid #24578)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 24578 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pBluescript
  • Backbone size w/o insert (bp) 4021
  • Vector type
    Mouse Targeting, Cre/Lox

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    Stbl2
  • Growth instructions
    Stbl2 (Invitrogen) or other RecA- strain 37 degrees in LB media
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    Ofd1
  • Species
    M. musculus (mouse)
  • Insert Size (bp)
    2781
  • Mutation
    Lysine-Aspartate-Aspartate 359-361 changed to Phenylalanine-Serine-Tyrosine (codons AAG-GAT-GAC changed to TTT-TTC-TAC) Includes exons 4-23 only
  • GenBank ID
    NM_177429
  • Entrez Gene
    Ofd1 (a.k.a. ORF2, Cxorf5, DXGgc7e)
  • Tag / Fusion Protein
    • Myc (C terminal on insert)

Cloning Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Mutation reported in:

Identification of the gene for oral-facial-digital type I syndrome.

Ferrante MI, Giorgio G, Feather SA, Bulfone A, Wright V, Ghiani M, Selicorni A, Gammaro L, Scolari F, Woolf AS, Sylvie O, Bernard L, Malcolm S, Winter R, Ballabio A, Franco B.

Am J Hum Genet. 2001 Mar;68(3):569-76. Epub 2001 Feb 13.PMID: 11179005

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pFloxin-Ofd1-Myc-KDD359-361FSY was a gift from Jeremy Reiter (Addgene plasmid # 24578 ; http://n2t.net/addgene:24578 ; RRID:Addgene_24578)
  • For your References section:

    Ofd1, a human disease gene, regulates the length and distal structure of centrioles. Singla V, Romaguera-Ros M, Garcia-Verdugo JM, Reiter JF. Dev Cell. 2010 Mar 16. 18(3):410-24. 10.1016/j.devcel.2009.12.022 PubMed 20230748
