pEnt L1L3 EF1a-tTA-3
(Plasmid #24415)

• Purpose: (Empty Backbone)
• Depositing Lab: Edward Hsiao
• Publication: Hsiao et al Stem Cell Res Ther. 2011 Mar 4. 2(2):11.

Backbone

• Vector backbone: pEntr2B
• Backbone manufacturer: Invitrogen
• Backbone size (bp): 2700
• Vector type: Entry vector

Growth in Bacteria

• Bacterial Resistance(s): Kanamycin, 50 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: Unknown

Gene/Insert

• Gene/Insert name: None

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ sequencing primer: EF-1a-F

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

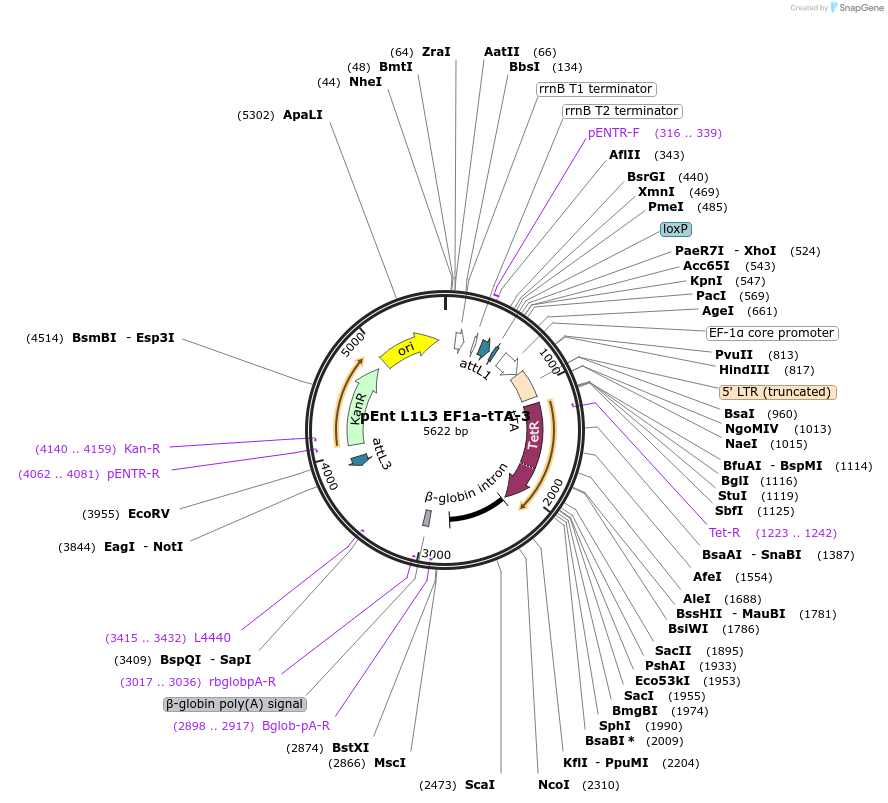

Contains Gateway L1L3 sites and EF1α promoter driving tTA. Does not contain insulator sequence.

Plasmid was constructed as follows: The pEntr2B entry vector (Invitrogen) was digested with PstI and XhoI to remove the attL2 site.
Oligonucleotides containing SalI-XhoI-Bsu36I-NdeI-PacI-EcoRI-NotI flanking the attL3 sequence on the 5' side
and PstI on the 3' side were ligated in to create an intermediate plasmid carrying attL1 and attL3 sites. A LoxP sequence was introduced at the XhoI site. The tTA and pA sequences were subsequently cloned into the EcoRI/NotI sites by PCR cloning from pUHG15-1 to generate pEntL1L3 tTA-3 (Addgene plasmid number 27105). The EF1α promoter from pORF9 was cloned into the PacI site to generate the
final entry vector pEntL1L3 EF1α-tTA-3.
